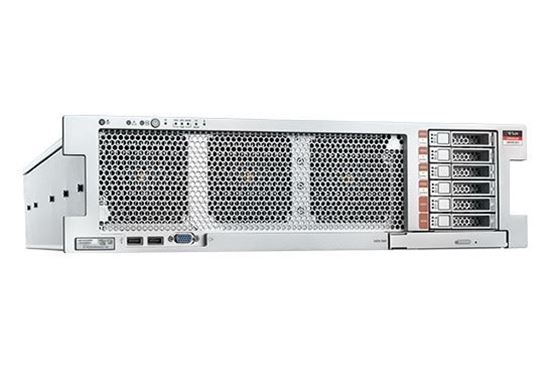

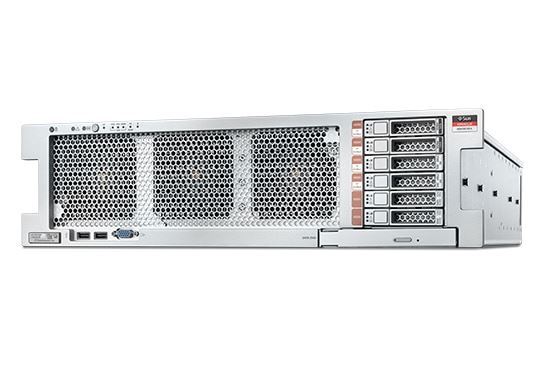

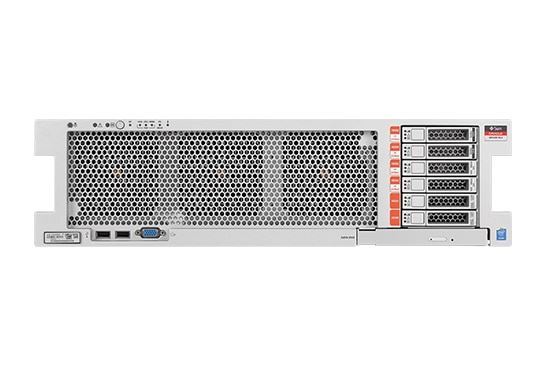

Oracle Server Server X5-4 E7-8895 v3

Processor Model:

Intel® Xeon® Processor E7-8800 v3 Series

Max Processors:

Four

Max Cores Per System:

72

Max Threads Per System:

144

Built-In Security:

TPM, FIPS 140-2 Compliant mode, Encrypted Storage Redirection

Max System Memory:

48 or 96 DIMMs, up to 1.5 TB or 3 TB

Reliability, Availability & Serviceability (RAS):

Hot-swappable and redundant drives, cooling fans and power supplies

Manageability:

Complete individual server management tools are included at no additional charge. Premier Support for Systems includes access to My Oracle Support and Oracle Enterprise Manager Ops Center multi server management.

Maximum Number of Disk Drives:

6

Largest Available Drive Size:

1.2 TB

Maximum Drive Spindle Speed:

10,000 rpm

Drive Protocol:

SAS-3

Physical Size:

2.5-inch

Maximum Number of Solid State Drives:

6

Largest Available Solid State Drive Size:

400 GB

Maximum Number of NVM Express Drives:

4

Largest Available NVM Express Drive Size:

1.6 TB

DVD-RW:

Yes, optional

Ethernet Ports:

Four onboard 10 GbE ports (only two active for two-CPU configs)

Fibre Channel Ports:

Yes with FC PCIe cards

USB Ports:

Six

Serial Ports:

One

Video Ports:

Two

PCIe Slots:

Up to ten available PCIe 3.0 (only five active for single-CPU configs) and one internal slot for SAS/RAID HBA

Power/ Cooling:

Redundant and hot-swappable

Power Supply Type:

Gold rated, 2060W 100-127 VAC

Form Factor:

Rack Server

Rack Units:

3

Operating System/ Software:

Windows, Oracle Linux, Solaris and Oracle VM
