Lenovo ThinkSystem SR550 SFF Silver 4108

  • (1) Intel Xeon Silver 4108 8C 85W 1.8GHz Processor
  • ThinkSystem 8GB TruDDR4 2666 MHz (1Rx8 1.2V) RDIMM
  • Hard Drive : None (2.5")
  • ThinkSystem RAID 530-8i PCIe 12Gb Adapter (RAID 0, 1, 10, 5, and 50)
  • Optical drive: Support for an external USB DVD RW Optical Disk Drive
  • 2x Integrated 1 GbE RJ-45 ports, 1x RJ-45 10/100/1000 Mb Ethernet systems management
  • XClarity Controller (XCC) Standard
  • 8 x SFF SAS/SATA hot-swap drive bays (8/16)
  • Redundant hot-swap 750 W Power Supply (1/2)
  • 2U rack-mount, Toolless Slide Rail
  • Warranty: 3 Year Onsite Repair 24x7 4 Hour Response
Nhà sản xuất: Lenovo
38.200.000 ₫

Abstract

The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need industry-leading reliability, management, and security, as well as cost-optimized performance, storage capacity, and flexible I/O. Designed to handle a wide range of workloads, the SR550 server cost-effectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.

This product guide provides essential technical and pre-sales information on the SR550 server, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR550 server and consider its use in IT solutions.

Change History

Changes in the April 24 update:

  • Added ThinkSystem 2.5" 5200 480GB, 960GB, 1.92TB, 3.84TB, and 7.68TB Entry SATA 6Gb Hot Swap SSDs
  • Added ThinkSystem 3.5" 5200 480GB, 960GB, 1.92TB, 3.84TB, and 7.68TB Entry SATA 6Gb Hot Swap SSDs
  • Added ThinkSystem 3.5" Intel S4500 240GB and 480GB Entry SATA 6Gb Simple Swap SSDs
  • Added ThinkSystem 3.5" PM1633a 3.84TB Capacity SAS 12Gb Hot Swap SSD
  • Added ThinkSystem 3.5" PM1635a 800GB and 1.6TB Mainstream SAS 12Gb Hot Swap SSDs
  • Withdrawn select Relationship and TopSeller models for EMEA
  • Added Red Hat Enterprise Linux 7.5
  • Added VMware vSphere 6.7 (ESXi)

Walkthrough Video with David Watts and Russ Resnick

Introduction

The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need industry-leading reliability, management, and security, as well as cost-optimized performance, storage capacity, and flexible I/O. Designed to handle a wide range of workloads, the SR550 server cost-effectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.

Featuring the Intel Xeon Processor Scalable Family, the SR550 server offers a balance of performance, capacity and value. The SR550 server supports up to two processors, up to 768 GB of 2666 MHz TruDDR4 memory, up to 16x 2.5-inch or up to 12x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible and scalable I/O expansion options with the LOM slot and up to 6x PCIe slots.

The SR550 server offers basic software RAID or advanced hardware RAID protection and a wide range of networking options, including embedded LOM, selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR550 server, provides advanced service processor control, monitoring, and alerting functions.

The following figure shows the Lenovo ThinkSystem SR550.

Lenovo ThinkSystem SR550
Figure 1. Lenovo ThinkSystem SR550

Did you know?

The SR550 server delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when connected to a 200 - 240 V AC power source.

The SR550 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations, which enable customers to lower energy costs, while still maintaining world-class reliability.

Key features

The SR550 server offers a balance of processing power, storage capacity, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier and efficient design improves your business environment and helps save operational costs.

Scalability and performance

The SR550 server offers numerous features to boost performance, improve scalability, and reduce costs:

  • Improves productivity by offering superior system performance with the Intel Xeon Processor Scalable Family with up to 20-core processors, up to 27.5 MB of last level cache (LLC), up to 2666 MHz memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.
    • Support for up to two processors, 40 cores, and 80 threads allows to maximize the concurrent execution of multithreaded applications.
    • Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
    • Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
    • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
    • Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.
  • Helps maximize system performance for data intensive applications with up to 2666 MHz memory speeds and up to 768 GB of memory capacity.
  • Offers flexible and scalable internal storage in a 2U rack form factor with up to 16x 2.5-inch drives for performance-optimized configurations or up to 12x 3.5-inch drives for capacity-optimized configurations, providing a wide selection of SAS/SATA HDDs/SSDs.
  • Provides I/O scalability with the LOM slot and up to six PCI Express (PCIe) 3.0 I/O expansion slots in a 2U rack form factor.
  • Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.

Availability and serviceability

The SR550 server provides many features to simplify serviceability and increase system uptime:

  • Offers protection in the event of a non-correctable memory failure with Single Device Data Correction (SDDC, also known as Chipkill, requires x4-based DIMMs), Adaptive Double Device Data Correction (ADDDC, also known as Redundant Bit Steering [RBS], requires x4-based DIMMs and Intel Xeon Gold or Platinum processors), memory mirroring, and memory rank sparing.
  • Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and adapter cards) with tool-less cover removal.
  • Offers affordable data protection with software RAID and Simple Swap drives and advanced hardware RAID data redundancy with hot-swap drives.
  • Provides availability for applications with redundant hot-swap power supplies and redundant non-hot-swap fans.
  • Allows preventive actions in advance of possible failure, thereby increasing server uptime and application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, M.2 storage), fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.
  • Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure to minimize downtime with Built-in XClarity Controller (XCC).
  • Provides quick access to system status, firmware, network, health, and alerts information via Virtual Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access.
  • Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity Provisioning Manager.

Manageability and security

Powerful systems management features simplify local and remote management of the SR550 server and deliver enterprise-class data protection:

  • Provides advanced service processor control, monitoring, and alerting functions with XClarity Controller, a next generation service processor.
  • Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified error handling, and operating system deployment with the embedded XClarity Provisioning Manager.
  • Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.
  • Increases uptime, reduces costs, and improves productivity through advanced server management capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.
  • Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.
  • Centralizes infrastructure resource management with Lenovo XClarity Integrators for VMware vCenter and Microsoft System Center, extending XClarity Administrator features to virtualization management software tools and enabling users to deploy and manage infrastructure end-to-end.
  • Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in China).
  • Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work with the Trusted Cryptographic Module (available only in China).
  • Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.
  • Provides faster, stronger encryption with industry-standard AES NI support.
  • Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit functionality, when combined with a supporting operating system.
  • Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted Execution Technology, allowing an application to run in its own isolated space, protected from all other software running on a system.

Energy efficiency

The SR550 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

  • Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.
  • Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.
  • Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.
  • Helps reduce power consumption with variable speed fans.
  • Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.

Components and connectors

The following figure shows the front of the SR550 server with 8x 3.5-inch drive bays.

Front view of the SR550: 8x 3.5-inch drive bays
Figure 2. Front view of the SR550: 8x 3.5-inch drive bays

The following figure shows the front of the SR550 server with 12x 3.5-inch drive bays.

Front view of the SR%50: 12x 3.5-inch drive bays
Figure 3. Front view of the SR550: 12x 3.5-inch drive bays

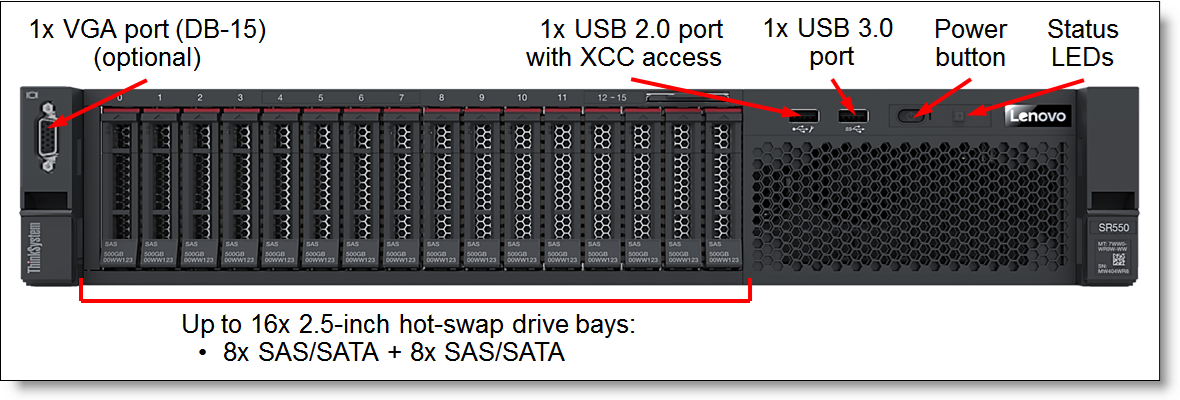

The following figure shows the front of the SR550 server with up to 16x 2.5-inch drive bays.

Front view of the SR550: 16x 2.5-inch drive bays
Figure 4. Front view of the SR550: Up to 16x 2.5-inch drive bays

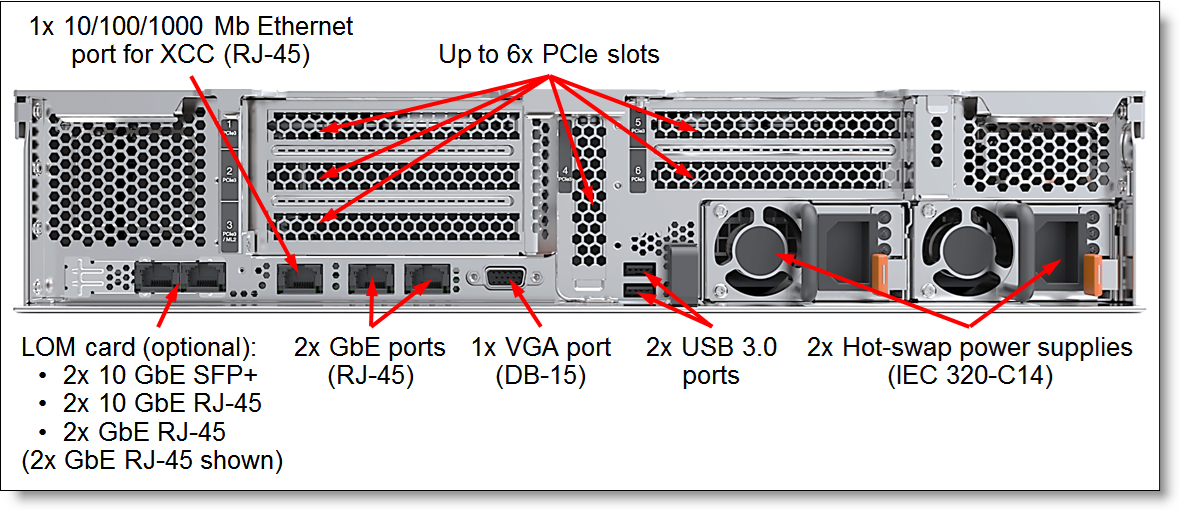

The following figure shows the rear of the SR550 server.

Rear view of the SR550
Figure 5. Rear view of the SR550

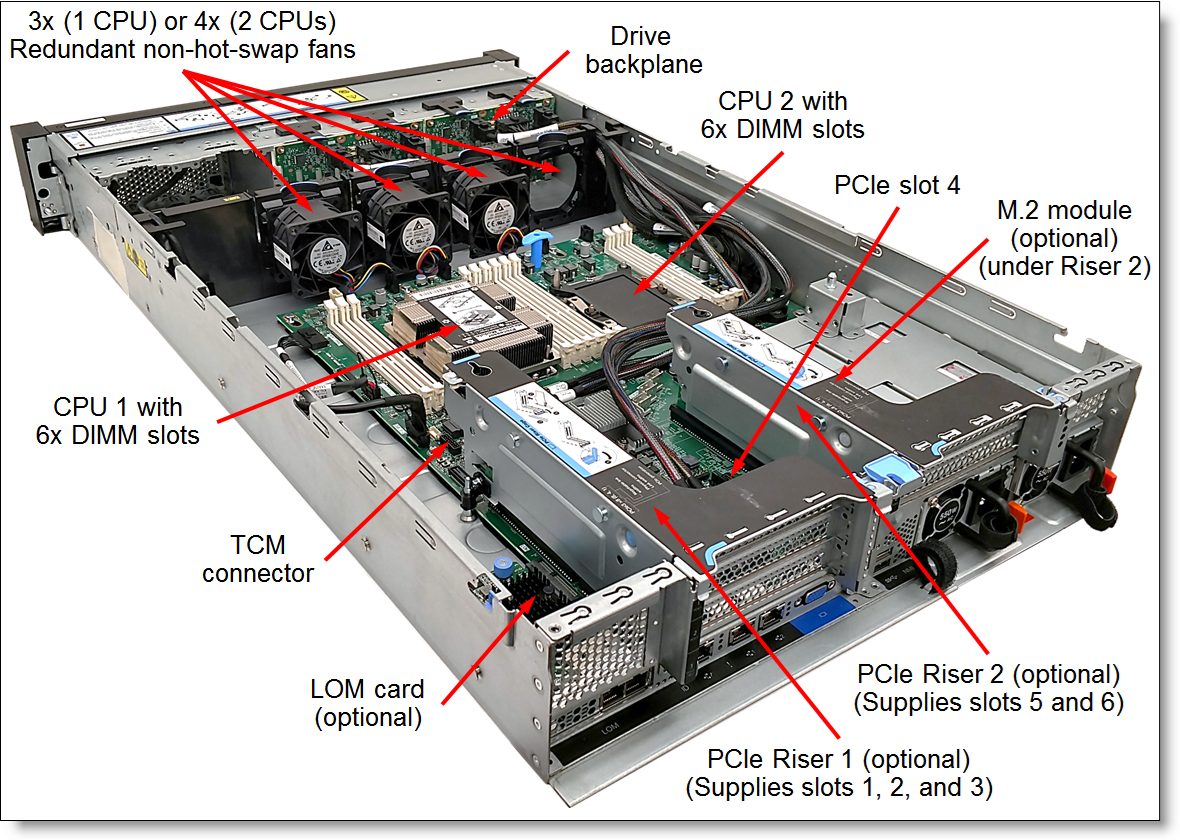

The following figure shows the locations of key components inside the SR550 server.

Internal view of the SR550
Figure 6. Internal view of the SR550

System specifications

The following table lists the system specifications for the SR550 server.

Table 1. SR550 system specifications
Components Specification
Form factor 2U rack-mount.
Processor Up to two Intel Xeon Bronze, Silver, Gold, or Platinum processors:
  • Up to 20 cores (2.0 GHz core speeds)
  • Up to 3.6 GHz core speeds (4 cores)
  • Two UPI links up to 10.4 GT/s each
  • Up to 27.5 MB cache
  • Up to 2666 MHz memory speed
Chipset Intel C622.
Memory Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel). Support for RDIMMs and LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2666 MHz.
Memory capacity
  • With RDIMMs: Up to 384 GB with 12x 32 GB RDIMMs and two processors.
  • With LRDIMMs: Up to 768 GB with 12x 64 GB LRDIMMs and two processors.
Memory protection Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
Drive bays
  • 8 LFF SATA Simple Swap drive bays
  • 8 LFF SAS/SATA hot-swap drive bays
  • 12 LFF SAS/SATA hot-swap drive bays
  • Up to 16 SFF hot-swap drive bays: 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA
Drive types 3.5-inch non-hot-swap drives:
  • 6 Gbps NL SATA HDDs up to 10 TB
  • 6 Gbps SATA SSDs up to 480 GB
3.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 900 GB (2.5" HDD in a 3.5" tray)
  • 12 Gbps NL SAS HDDs up to 12 TB
  • 12 Gbps NL SAS HDD SEDs up to 4 TB
  • 12 Gbps SAS SSDs up to 3.84 TB
  • 6 Gbps NL SATA HDDs up to 12 TB
  • 6 Gbps SATA SSDs up to 7.68 TB (2.5" SSD in a 3.5" tray)
2.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 2.4 TB
  • 12 Gbps Nearline (NL) SAS HDDs up to 2 TB
  • 12 Gbps SAS HDD SEDs up to 600 GB
  • 12 Gbps SAS SSDs up to 7.68 TB
  • 6 Gbps NL SATA HDDs up to 2 TB
  • 6 Gbps SATA SSDs up to 7.68 TB
Internal M.2 SSDs:
  • 6 Gbps SATA up to 128 GB
Intermix of SAS/SATA HDDs/SSDs is supported within a system, but not within a RAID array.
Internal storage capacity
  • 3.5-inch models: Up to 144 TB with 12x 12 TB 3.5" SAS/SATA HDDs
  • 2.5-inch models: Up to 122.8 TB with 16x 7.68 TB 2.5" SAS/SATA SSDs
Storage controller 6 Gbps SATA:
  • Onboard SATA AHCI (non-RAID).
  • RAID 0/1/10/5 with the onboard SATA RAID (Intel RSTe).
12 Gbps SAS/6 Gbps SATA RAID:
  • RAID 0/1/10/5/50 with RAID 530-8i or RAID 730-8i 1GB Cache (China only).
  • RAID 0/1/10/5/50/6/60 with RAID 930-8i 2GB Flash or 16i 4 GB Flash.
12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i or 16i HBA.
Optical drive bays None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).
Network interfaces
  • 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
  • Onboard LOM slot for two additional 2x 1/10 Gb Ethernet ports:
    • 2x 1 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE SFP+ ports (no 10/100 Mb support)
  • Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
I/O expansion slots Up to six slots. Slot 4 is the fixed slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, half-length (PCIe x16 slot is double-wide)
  • Slot 2: PCIe 3.0 x8; full-height, half-length (not present if the slot 1 is PCIe x16)
  • Slot 3: PCIe 3.0 x8 or ML2 x8; full-height, half-length
  • Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)
  • Slot 5: PCIe 3.0 x16; full-height, half-length
  • Slot 6: PCIe 3.0 x8; full-height, half-length
Slot 5 requires the second processor to be installed.
Ports
  • Front:
    • 1x USB 2.0 port with XClarity Controller access.
    • 1x USB 3.0 port.
    • 1x DB-15 VGA port (optional).
  • Rear: 2x USB 3.0 ports and 1x DB-15 VGA port. Optional 1x DB-9 serial port.
Cooling Three (one processor) or four (two processors) non-hot-swap system fans with N+1 redundancy.
Power supply Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (China only).
Video Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 16 bits per pixel.
Hot-swap parts Drives (select models) and power supplies.
Systems management XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.
Security features Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in China). Optional Lenovo Business Vantage security software (available only in China).
Operating systems Microsoft Windows Server 2012 R2 and 2016; Red Hat Enterprise Linux 6 (x64) and 7; SUSE Linux Enterprise Server 11 (x64) and 12; VMware vSphere (ESXi) 6.0, 6.5, and 6.7.
Warranty One-year (7X03) or three-year (7X04) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.
Service and support Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Server Software Support, and Basic Hardware Installation Services.
Dimensions Height: 87 mm (3.4 in), width: 445 mm (17.5 in), depth: 720 mm (28.3 in)
Weight Minimum configuration: 19 kg (41.9 lb), maximum: 26 kg (57.3 lb)

Models

SR550 server models are country-specific; that is, each country may define their own server models, and not all server models are available in every country. Configure-to-order (CTO) models can also be created for factory-integrated server customization.

For a complete list of the SR550 models, contact a Lenovo or Lenovo Business Partner representative in your country. Information on the SR550 models is also available on the PSREF website:
http://psref.lenovo.com/Product/ThinkSystem/ThinkSystem_SR550

All models of the SR550 server are shipped with the following items:

  • Rack Installation Guide
  • Electronic Publications Flyer

Models table conventions: The model tables shown in this section use the following conventions:

  • XClarity Controller: "S" = Standard, "A" = Advanced, "E" = Enterprise.
  • Front VGA port: "Y" = Included; "N" = Not included, optional.
  • Tool-less Rail Kit: "Y" = Included; "N" = Not included, optional.
  • Cable Management Arm (CMA): "Y" = Included; "N" = Not included, optional.
  • Power cord:
    • "C2" = 2.8 m country-specific line cord.
    • "R1" = 1.5 m C13-C14 rack power cable.
    • "R2" = 2.8 m C13-C14 rack power cable.
    • "R4" = 4.3 m C13-C14 rack power cable.
    • "N" = Not included; see Power supplies and cables for the ordering information.

The following tables list the models of the SR550 server for the following regions:

Table 2. SR550 server models: North America
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - North America
7X04A051NA 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A04ZNA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A056NA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A04YNA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A057NA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A05ANA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A053NA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A055NA 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A05BNA 1x 5115 10C
85W 2.4GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A05JNA 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A04VNA 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A04PNA 1x 6126 12C
125W 2.6GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A04UNA 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A04NNA 1x 6138 20C
125W 2.0GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
TopSeller models - North America
7X04A02QNA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E N Y N R2
7X04A02KNA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E N Y N R2
7X04A02TNA 1x 4116 12C
85W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E N Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Table 3. SR550 server models: Brazil
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Brazil
7X04A063BR 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A066BR 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A069BR 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A06CBR 1x 5118 12C
105W 2.3GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A064BR 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A067BR 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A06ABR 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A06DBR 1x 5120 14C
105W 2.2GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A065BR 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A068BR 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A06BBR 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A06EBR 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
TopSeller models - Brazil
7X04100GBR 1x 3106 8C
85W 1.7GHz
1x 16GB
(2Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 550W S N Y N C2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Table 4. SR550 server models: Latin America (except Brazil)
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Latin America (except Brazil)
7X04A054LA 1x 4108 8C
85W 1.8GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A05GLA 1x 4110 8C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A05HLA 1x 4114 10C
85W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A05CLA 1x 4116 12C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A05ELA 1x 5115 10C
85W 2.4GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A02PLA 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A02CLA 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A03MLA 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A03XLA 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A03NLA 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A03YLA 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A03LLA 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A036LA 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
7X04A02LLA 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R4
TopSeller models - Latin America (Chile only)
7X041001LA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
16 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
3x PCIe x8
1x ML2 x8
2x 750W
Platinum
E Y Y N R2
7X041002LA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
16 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
3x PCIe x8
1x ML2 x8
2x 750W
Platinum
E Y Y N R2
TopSeller models - Latin America (Colombia only)
7X04A06NLA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 550W E Y Y N R2
TopSeller models - Latin America (except Brazil and Chile)
7X041009LA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S Y Y Y R2
7X04100FLA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
2x 600GB
15K HDD
2x 1Gb
RJ-45
4x PCIe x8 2x 750W
Platinum
A Y Y N R2
7X04100ALA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 2x 750W
Platinum
S Y Y Y R2
TopSeller models - Latin America (except Brazil)
7X04A050LA 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A05FLA 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A052LA 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A05DLA 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R1
7X04A04MLA 1x 4108 8C
85W 1.8GHz
2x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
3x 600GB
15K HDD
Open
slot
4x PCIe x8 2x 750W
Platinum
A Y Y N R1
7X04A04WLA 1x 4108 8C
85W 1.8GHz
2x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
3x 600GB
15K HDD
Open
slot
4x PCIe x8 2x 750W
Platinum
A Y Y N R2
7X04A04QLA 1x 4108 8C
85W 1.8GHz
2x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
3x 4TB
SAS HDD
Open
slot
4x PCIe x8 2x 750W
Platinum
A Y Y N R1
7X04A059LA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
2x 600GB
15K HDD
Open
slot
4x PCIe x8 2x 750W
Platinum
A Y Y N R1
7X04A04XLA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
2x 2TB
SAS HDD
Open
slot
4x PCIe x8 2x 750W
Platinum
A Y Y N R1
7X04A04LLA 1x 4110 8C
85W 2.1GHz
2x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
3x 4TB
SAS HDD
Open
slot
4x PCIe x8 2x 750W
Platinum
A Y Y N R1
7X04A058LA 1x 5115 10C
85W 2.4GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
2x 2TB
SAS HDD
Open
slot
4x PCIe x8 2x 750W
Platinum
A Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Table 5. SR550 server models: EMEA
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - EMEA
7X04A005EA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A009EA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A00JEA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
TopSeller models - EMEA
7X04A00MEA 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x SATA
RAID
8 / 8
SS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A00DEA 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A00CEA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A002EA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A00FEA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A06PEA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A00AEA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A003EA 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Table 6. SR550 server models: India
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - India
7X041000SG 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A010SG 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A00USG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x SATA
RAID
8 / 8
SS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A00YSG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A011SG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A014SG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A012SG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A013SG 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A01SSG 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A01QSG 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N C2
7X04A01TSG 1x 5122 4C
105W 3.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A01NSG 1x 5122 4C
105W 3.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N C2
7X04A01USG 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A01RSG 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N C2
7X04A01VSG 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A00ZSG 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N C2
7X04A01KSG 1x 6138 20C
125W 2.0GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 550W S N Y N C2
7X04A015SG 1x 6138 20C
125W 2.0GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N C2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Table 7. SR550 server models: Hong Kong, Taiwan, Korea
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Hong Kong, Taiwan, Korea
7X04A02DCN 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A03BCN 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A02UCN 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A03FCN 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A032CN 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A03JCN 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A02FCN 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A02ECN 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A02MCN 1x 4112 4C
85W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A03DCN 1x 4112 4C
85W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A02NCN 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A02ZCN 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A03PCN 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A03UCN 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A030CN 1x 5115 10C
85W 2.4GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A038CN 1x 5115 10C
85W 2.4GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A01PCN 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A00WCN 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A01MCN 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A00TCN 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A01JCN 1x 5122 4C
105W 3.6GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A01DCN 1x 5122 4C
105W 3.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A01GCN 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A01CCN 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A01FCN 1x 6138 20C
125W 2.0GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A016CN 1x 6138 20C
125W 2.0GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
4x PCIe x8 1x 750W
Platinum
S N Y N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Table 8. SR550 server models: Japan
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Japan
7X04A06GJP 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 550W A N Y N N
7X04A06HJP 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 14
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A N Y N N
7X04A06MJP 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A N Y N N
7X04A06LJP 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A N Y N N
7X04A04CJP 1x 5122 4C
105W 3.6GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S N Y N N
7X04A06KJP 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A N Y N N
7X04A04DJP 1x 6138 20C
125W 2.0GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S N Y N N
TopSeller models - Japan
7X04A04JJP 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 550W A N Y N N
7X04A04HJP 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
Open
slot
4x PCIe x8 1x 550W A N Y N N
7X04A04GJP 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 550W A N Y N N
7X04A04FJP 1x 4110 8C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 550W A N Y N N
7X04A04EJP 1x 4112 4C
85W 2.6GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 550W A N Y N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Table 9. SR550 server models: ASEAN
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - ASEAN
7X04A00RSG 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A00SSG 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A00GSG 1x 4110 8C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A00KSG 1x 4112 4C
85W 2.6GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A006SG 1x 4112 4C
85W 2.6GHz
1x 8GB
(1Rx8)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A008SG 1x 4114 10C
85W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A00BSG 1x 4116 12C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A01ESG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A04TSG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A017SG 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A00VSG 1x 5122 4C
105W 3.6GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A00XSG 1x 5122 4C
105W 3.6GHz
1x 8GB
(1Rx8)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A01ASG 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A01XSG 1x 6138 20C
125W 2.0GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8 1x 750W
Platinum
S N Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Table 10. SR550 server models: Australia and New Zealand
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(6 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Australia and New Zealand
7X04A03AAU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A03CAU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A033AU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A03QAU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A02SAU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A03RAU 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-16i
12 / 12
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A03GAU 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A02HAU 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A031AU 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A044AU 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A037AU 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A043AU 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A03HAU 1x 6126 12C
125W 2.6GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A049AU 1x 6126T 12C
125W 2.6GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A02XAU 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A041AU 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A029AU 1x 6138 20C
125W 2.0GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X04A042AU 1x 6138 20C
125W 2.0GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S N Y N R2
7X04A04KAU 1x 6138 20C
125W 2.0GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
S Y Y N R2
TopSeller models - Australia and New Zealand
7X04A02GAU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x SATA
RAID
8 / 8
SS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X041006AU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x SATA
RAID
8 / 8
SS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E Y Y Y R2
7X04A03TAU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X041003AU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E Y Y Y R2
7X041007AU 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x SATA
RAID
8 / 8
SS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E Y Y Y R2
7X04A02YAU 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X041004AU 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E Y Y Y R2
7X04A02AAU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A02BAU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
2x 300GB
10K HDD
Open
slot
1x PCIe x8 2x 750W
Platinum
A Y Y N R2
7X04A03WAU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X041008AU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x SATA
RAID
8 / 8
SS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E Y Y Y R2
7X041005AU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
E Y Y Y R2
7X04A02WAU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A03KAU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
2x 300GB
10K HDD
Open
slot
1x PCIe x8 2x 750W
Platinum
A Y Y N R2
7X04A02JAU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS LFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A03VAU 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A02VAU 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
1x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A039AU 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A045AU 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
E N Y N R2
7X04A03SAU 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A040AU 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
E N Y N R2
7X04A03EAU 1x 5122 4C
105W 3.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A048AU 1x 5122 4C
105W 3.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
E N Y N R2
7X04A02RAU 1x 6126 12C
125W 2.6GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A03ZAU 1x 6126T 12C
125W 2.6GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
E N Y N R2
7X04A035AU 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A Y Y N R2
7X04A046AU 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
E N Y N R2
7X04A047AU 1x 6138 20C
125W 2.0GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
E N Y N R2
7X04A034AU 1x 6138 20C
125W 2.0GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 16
HS SFF
Open
bay
Open
slot
4x PCIe x8 1x 750W
Platinum
A Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports one onboard PCIe slot 4 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 4. The onboard SATA RAID controller does not consume a PCIe slot.

Processors

The SR550 server supports one or two Intel Xeon Bronze, Silver, Gold, or Platinum processors of up to 125 W TDP. The following table lists the specifications of the processors for the SR550 server.

Table 11. Processor specifications (HT=Hyper-Threading, TB=Turbo Boost, VT=Virtualization Technology)
CPU
model
Core frequency
(Base / TB Max)
Number
of cores /
threads
Cache Max DDR4
frequency
Max
memory
per socket
UPI
speed
TDP HT TB VT-x VT-d
Intel Xeon Bronze processors
3104 1.7 / 1.7 GHz 6 / 6 8.25 MB 2133 MHz 768 GB 9.6 GT/s 85 W No No Yes Yes
3106 1.7 / 1.7 GHz 8 / 8 11 MB 2133 MHz 768 GB 9.6 GT/s 85 W No No Yes Yes
Intel Xeon Silver processors
4108 1.8 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4109T 2.0 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 70 W Yes Yes Yes Yes
4110 2.1 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4112 2.6 / 3.0 GHz 4 / 8 8.25 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4114 2.2 / 3.0 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4114T 2.2 / 3.0 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4116 2.1 / 3.0 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4116T 2.1 / 3.0 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
Intel Xeon Gold processors
5115 2.4 / 3.2 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 10.4 GT/s 85 W Yes Yes Yes Yes
5117 2.0 / 2.8 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105W Yes Yes Yes Yes
5118 2.3 / 3.2 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5119T 1.9 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 85 W Yes Yes Yes Yes
5120 2.2 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5120T 2.2 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5122 3.6 / 3.7 GHz 4 / 8 16.5 MB 2666 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
6126 2.6 / 3.7 GHz 12 / 24 19.25 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6126T 2.6 / 3.7 GHz 12 / 24 19.25 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6128 3.4 / 3.7 GHz 6 / 12 19.25 MB 2666 MHz 768 GB 10.4 GT/s 115 W Yes Yes Yes Yes
6130 2.1 / 3.7 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6130T 2.1 / 3.7 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6138 2.0 / 3.7 GHz 20 / 40 27.5 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6138T 2.0 / 3.7 GHz 20 / 40 27.5 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
Intel Xeon Platinum processors
8153 2.0 / 2.8 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
8156 3.6 / 3.7 GHz 4 / 8 16.5 MB 2666 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes

For the SR550 server models that come standard with one processor, the second processor can be ordered, if required (see the following table for ordering information). The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and an additional system fan.

Table 12. Processor options
Description Part number Feature code*
Intel Xeon Bronze processors
ThinkSystem SR550 Intel Xeon Bronze 3104 6C 85W 1.7GHz Processor Option Kit 4XG7A07199 AWEJ
ThinkSystem SR550 Intel Xeon Bronze 3106 8C 85W 1.7GHz Processor Option Kit 4XG7A07198 AWEH
Intel Xeon Silver processors
ThinkSystem SR550 Intel Xeon Silver 4108 8C 85W 1.8GHz Processor Option Kit 4XG7A07197 AWEG
ThinkSystem SR550 Intel Xeon Silver 4109T 8C 70W 2.0GHz Processor Option Kit 4XG7A07196 AWET
ThinkSystem SR550 Intel Xeon Silver 4110 8C 85W 2.1GHz Processor Option Kit 4XG7A07195 AWEE
ThinkSystem SR550 Intel Xeon Silver 4112 4C 85W 2.6GHz Processor Option Kit 4XG7A07194 AWEF
ThinkSystem SR550 Intel Xeon Silver 4114 10C 85W 2.2GHz Processor Option Kit 4XG7A07192 AWEC
ThinkSystem SR550 Intel Xeon Silver 4114T 10C 85W 2.2GHz Processor Option Kit 4XG7A09054 AWES
ThinkSystem SR550 Intel Xeon Silver 4116 12C 85W 2.1GHz Processor Option Kit 4XG7A07191 AWER
ThinkSystem SR550 Intel Xeon Silver 4116T 12C 85W 2.1GHz Processor Option Kit 4XG7A09053 AWEA
Intel Xeon Gold processors
ThinkSystem SR550 Intel Xeon Gold 5115 10C 85W 2.4GHz Processor Option Kit 4XG7A07174 AWDU
ThinkSystem SR550 Intel Xeon Gold 5117 14C 105W 2.0GHz Processor Option Kit 4XG7A09084 B137
ThinkSystem SR550 Intel Xeon Gold 5118 12C 105W 2.3GHz Processor Option Kit 4XG7A07173 AWEP
ThinkSystem SR550 Intel Xeon Gold 5119T 14C 85W 1.9GHz Processor Option Kit 4XG7A09052 AWEQ
ThinkSystem SR550 Intel Xeon Gold 5120 14C 105W 2.2GHz Processor Option Kit 7XG7A06893 AWE6
ThinkSystem SR550 Intel Xeon Gold 5120T 14C 105W 2.2GHz Processor Option Kit 7XG7A06892 AWE8
ThinkSystem SR550 Intel Xeon Gold 5122 4C 105W 3.6GHz Processor Option Kit 7XG7A06891 AWED
ThinkSystem SR550 Intel Xeon Gold 6126 12C 125W 2.6GHz Processor Option Kit 7XG7A06890 AWEL
ThinkSystem SR550 Intel Xeon Gold 6126T 12C 125W 2.6GHz Processor Option Kit 7XG7A06889 AWE5
ThinkSystem SR550 Intel Xeon Gold 6128 6C 115W 3.4GHz Processor Option Kit 4XG7A09050 AWEB
ThinkSystem SR550 Intel Xeon Gold 6130 16C 125W 2.1GHz Processor Option Kit 7XG7A06888 AWEN
ThinkSystem SR550 Intel Xeon Gold 6130T 16C 125W 2.1GHz Processor Option Kit 7XG7A06887 AWE4
ThinkSystem SR550 Intel Xeon Gold 6138 20C 125W 2.0GHz Processor Option Kit 7XG7A06886 AWDZ
ThinkSystem SR550 Intel Xeon Gold 6138T 20C 125W 2.0GHz Processor Option Kit 4XG7A09051 AWEM
Intel Xeon Platinum processors
ThinkSystem SR550 Intel Xeon Platinum 8153 16C 125W 2.0GHz Processor Option Kit 7XG7A06885 AWDR
ThinkSystem SR550 Intel Xeon Platinum 8156 4C 105W 3.6GHz Processor Option Kit 4XG7A07190 AWDL

* For CTO configurations, the feature code represents a processor, and fans and heatsinks are derived by the configurator.

Memory

The SR550 server supports up to 6 TruDDR4 memory DIMMs with one processor and up to 12 DIMMs when two processors are installed. Each processor has six memory channels, and there is a one DIMM per channel.

Lenovo TruDDR4 memory uses the highest-quality components sourced from Tier 1 DRAM suppliers and only memory that meets strict requirements is selected. It is compatibility tested and tuned on every ThinkSystem server to maximize performance and reliability.

TruDDR4 memory has a unique signature programmed into the DIMM, which enables Lenovo servers to verify whether the memory installed is qualified and supported. Lenovo qualified and supported TruDDR4 memory is covered by Lenovo warranty, and service and support provided worldwide.

The following rules apply when selecting the memory configuration:

  • The server supports RDIMMs and LRDIMMs.
  • Mixing different types of memory (RDIMMs and LRDIMMs) is not supported.
  • Mixing x4 and x8 RDIMMs and RDIMMs of different capacity is supported.
  • All DIMMs in the server operate at the same speed up to 2666 MHz, which is determined by the maximum memory speed supported by the specific processor.
    Note: Maximum memory speed can be achieved when Max performance mode is enabled in UEFI.
  • The following maximum memory capacities supported by the server:
    • RDIMMs: 384 GB (192 GB per processor).
    • LRDIMMs: 768 GB (384 GB per processor).

The following memory protection technologies are supported:

  • ECC
  • SDDC (for x4-based memory DIMMs)
  • ADDDC (for x4-based memory DIMMs; Gold and Platinum processors only)
  • Memory mirroring
  • Memory rank sparing
  • Patrol scrubbing
  • Demand scrubbing

Single Device Data Correction (SDDC) works only in the independent channel mode (the default operational mode) and supports only x4-based memory DIMMs.

Adaptive Double Device Data Correction (ADDDC) works with x4-based memory DIMMs and requires two DIMM ranks per channel, Intel Xeon Gold or Platinum processors, and the Closed Page memory access mode.

If memory mirroring is used, then DIMMs must be installed in pairs (a minimum of one pair per each processor), and both DIMMs in a pair must be identical in type and size.

If memory rank sparing is used, then a minimum of one quad-rank DIMM or two single-rank or dual-rank DIMMs must be installed per populated channel (the DIMMs do not need being identical). In rank sparing mode, one rank of a DIMM in each populated channel is reserved as spare memory. The size of a rank varies depending on the DIMMs installed.

SDDC, memory mirroring, and memory rank sparing modes are mutually exclusive. Only one operational memory mode can be enabled on the server, and it is a system-wide setting.

The following table lists memory options available for the SR550 server.

Table 13. Memory options
Description Part number Feature code Maximum supported*
RDIMMs - 2666 MHz
ThinkSystem 8GB TruDDR4 2666 MHz (1Rx8 1.2V) RDIMM 7X77A01301 AUU1 6 / 12
ThinkSystem 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM 7X77A01302 AUNB 6 / 12
ThinkSystem 16GB TruDDR4 2666 MHz (2Rx8 1.2V) RDIMM 7X77A01303 AUNC 6 / 12
ThinkSystem 32GB TruDDR4 2666 MHz (2Rx4 1.2V) RDIMM 7X77A01304 AUND 6 / 12
LRDIMMs - 2666 MHz
ThinkSystem 64GB TruDDR4 2666 MHz (4Rx4 1.2V) LRDIMM 7X77A01305 AUNE 6 / 12

* The maximum quantity shown is with one processor / two processors

Internal storage

The SR550 server supports the following internal drive bay configurations:

  1. 8 LFF SATA Simple Swap drive bays
  2. 8 LFF SAS/SATA hot-swap drive bays
  3. 12 LFF SAS/SATA hot-swap drive bays
  4. Up to 16 SFF hot-swap drive bays: 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA

In addition, the SR550 server models can be configured with one or two internal M.2 SATA SSDs. The server also supports configurations without drive bays.

The following figure shows the internal drive bay configurations.

Internal drive bay configurations
Figure 7. Internal drive bay configurations

The following table lists the internal storage options for the SR550 server.

Table 14. Internal storage options
Description Part number Feature code Maximum supported
Factory-installed backplane kits
ThinkSystem SR550/SR590/SR650 3.5" SATA/SAS 8-Bay Backplane Kit None* AUR6 1
ThinkSystem SR550/SR590/SR650 3.5" SATA/SAS 12-Bay Backplane Kit None* AUR9 1
ThinkSystem SR550/SR650 2.5" SATA/SAS 8-Bay Backplane Kit None* AURA 2
Backplane kit field upgrade options
SR550/SR590/SR650 3.5" SATA/SAS 8-Bay Backplane Upgrade Kit 4XH7A08770 None** 1
SR550/SR590/SR650 3.5" SATA/SAS 12-Bay Backplane Upgrade Kit 4XH7A08771 None** 1
SR550/SR590/SR650 2.5" SATA/SAS 8-Bay Backplane Upgrade Kit 7XH7A06254 None** 2
M.2 enablement kits
ThinkSystem M.2 Enablement Kit 7Y37A01092 AUMU 1
ThinkSystem M.2 with Mirroring Enablement Kit 7Y37A01093 AUMV 1

* These backplane kits can be factory-installed in standard or custom (CTO or Special Bid) models, and they might not have an option part number assigned.
** Field upgrade only.

Configuration notes:

  • The 2.5" 8-drive backplane kit (7XH7A06254) adds 8x 2.5" SAS/SATA hot-swap drive bays to the previously configured models that support drive bay expansion capabilities.
  • Models without any drive bays that are based on the 16x 2.5" chassis (feature code AV0R) support adding drive bays by using the 2.5" 8-drive backplane kit (7XH7A06254).
  • Models without any drive bays that are based on the 12x 3.5" chassis (feature code AV0Q) include the Right EIA Latch with FIO (USB ports, status LEDs, and a power button). These models support adding drive bays by using the 3.5" 8-drive backplane kit (4XH7A08770) or 3.5" 12-drive backplane kit (4XH7A08771).
  • The backplane upgrade kits include drive backplanes and required SAS cables, power cables, and drive bay fillers; storage controllers are not included.
  • The M.2 Enablement Kit (7Y37A01092) supports one M.2 SATA SSD which is connected to the SATA port on the Intel Platform Controller Hub (PCH).
  • The M.2 with Mirroring Enablement Kit (7Y37A01093) is connected to the Intel PCH via the PCIe link, and the kit supports two M.2 SATA SSDs that can be configured in a RAID-1 or RAID-0 drive group, or they can operate as two separate drives.

The following tables list supported internal storage configurations with the SAS/SATA backplanes.

Table 15. Internal drive bay configurations
Drive bay configuration Backplane kit type and quantity Storage controller type and quantity*
2.5" SATA/SAS 8-Bay
3.5" SATA/SAS 8-Bay
3.5" SATA/SAS 12-Bay
12x 3.5" chassis (Feature code AV0Q)
8x 3.5-in. SATA Simple Swap 0 0 0 Onboard AHCI (non-RAID) / Intel RSTe (RAID) (8)
8x 3.5-in. SAS/SATA hot-swap 0 1 0 1x RAID 530/730/930-8i (8)
1x 430-8i HBA (8)
12x 3.5-in. SAS/SATA hot-swap 0 0 1 1x RAID 930-16i (12)
1x 430-16i HBA (12)
16x 2.5" chassis (Feature code AV0R)
8x 2.5-in. SAS/SATA hot-swap 1 0 0 1x RAID 530/730/930-8i (8)
1x 430-8i HBA (8)
16x 2.5-in. SAS/SATA hot-swap 2 0 0 1x RAID 930-16i (16)
1x 430-16i HBA (16)
2x RAID 530/730/930-8i (8+8)**
2x 430-8i HBA (8+8)
1x RAID 530/730/930-8i + 1x 430-8i HBA (8+8)

* The numbers in brackets (x or x+y) specify the quantity of drive bays connected to each of the controllers.
** A combination of any two of the RAID 530-8i, RAID 730-8i, and RAID 930-8i controllers is supported
.

Controllers for internal storage

The following table lists the storage controllers and options for internal storage of the SR550 server.

Table 16. RAID controllers and HBAs for internal storage
Description Part number Feature code Maximum supported I/O slots supported
6 Gbps SATA controllers
Onboard AHCI (non-RAID) / Intel RSTe (RAID) Onboard* Onboard* 1 -
12 Gb SAS/SATA RAID controllers
ThinkSystem RAID 530-8i PCIe 12Gb Adapter 7Y37A01082 AUNG 2 4, 1, 2
ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter 7Y37A01083 AUNH 2** 4, 1, 2
ThinkSystem RAID 930-8i 2GB Flash PCIe 12Gb Adapter 7Y37A01084 AUNJ 2 4, 1, 2
ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter 7Y37A01085 AUNK 1 4, 1, 2
12 Gb SAS/SATA non-RAID HBAs
ThinkSystem 430-8i SAS/SATA 12Gb HBA 7Y37A01088 AUNL 2 4, 1, 2
ThinkSystem 430-16i SAS/SATA 12Gb HBA 7Y37A01089 AUNM 1 4, 1, 2

* The onboard SATA controller integrated into the Intel C622 Platform Controller Hub (PCH) supports non-RAID (JBOD) AHCI mode or a hardware-assist, software RAID feature (Intel Rapid Storage Technology Enterprise [RSTe]).
** Available in China only.

Configuration note: Low profile SAS RAID controllers and HBAs for internal storage are supported in the PCIe x8 slot 4 on the system board and full-high PCIe x8 and x16 slots supplied by the riser card 1.

The following table summarizes features of supported SAS/SATA storage controllers.

Table 17. Storage controller features and specifications (LP = Low profile, FHHL = Full-height half-length)
Feature Intel
RSTe
RAID
530-8i
RAID
730-8i
RAID
930-8i
RAID
930-16i
430-8i
HBA
430-16i
HBA
Form factor Onboard PCIe LP PCIe LP PCIe LP PCIe LP PCIe LP PCIe LP
SAS controller chip Not applicable SAS3408 SAS3108 SAS3508 SAS3516 SAS3408 SAS3416
Host interface Not applicable PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 6 Gb SATA 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS
Number of ports 8 8 8 8 16 8 16
Connector type SATA x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4
Number of connectors 2 2 2 2 4 2 4
Drive interface SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA
Drive type HDD HDD, SSD, SED HDD, SSD HDD, SSD, SED HDD, SSD, SED HDD, SSD, SED* HDD, SSD, SED*
Hot-swap
drive support
No Yes Yes Yes Yes Yes Yes
Number of drives 8 8 8 8 16 8 16
RAID levels 0/1/10/5 0/1/10/5/50 0/1/10/5/50 0/1/10/5/
50/6/60
0/1/10/5/
50/6/60
None None
JBOD mode Yes Yes Yes Yes Yes Yes Yes
Cache None None 1 GB 2 GB 4 GB None None
Cache protection None None None Flash backup
(Included)
Flash backup
(Included)
None None
SED key management
(SafeStore)
No Yes No Yes Yes No No
SSD I/O acceleration
(FastPath)
No Yes No Yes Yes No No
SSD Caching
(CacheCade Pro 2.0)
No No No No** No** No No
Consistency check Yes Yes Yes Yes Yes No No
Patrol read Yes Yes Yes Yes Yes No No
Online capacity expansion Yes Yes Yes Yes Yes No No
Online RAID level migration Yes Yes Yes Yes Yes No No
Global Hot Spare Yes Yes Yes Yes Yes No No
Auto-rebuild Yes Yes Yes Yes Yes No No

* HBAs do not support key management for SEDs; third-party host software is responsible for managing the keys.
** The SSD caching feature has been phased out in the new generation of advanced RAID controllers.

Important: The onboard Intel RSTe is not supported by virtualization hypervisors, including VMware vSphere (ESXi), Linux KVM, Xen, and Microsoft Hyper-V.

For more information, see the list of Product Guides in the following categories:

Drives for internal storage

The following tables list drive options for the SR550 server.

Table 18. Drive options for internal storage: 3.5-inch non-hot-swap drives
Description Part number Feature code Maximum supported
3.5-inch non-hot-swap HDDs - 6 Gbps SATA
ThinkSystem 1TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00055 AUZS 8
ThinkSystem 2TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00056 AUZT 8
ThinkSystem 4TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00057 AUZU 8
ThinkSystem 6TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00058 AXC7 8
ThinkSystem 8TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00059 AXC6 8
ThinkSystem 10TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00060 AXC8 8
3.5-inch non-hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4500 240GB Entry SATA 6Gb Simple Swap SSD 4XB7A08491 B2XM 8
ThinkSystem 3.5" Intel S4500 480GB Entry SATA 6Gb Simple Swap SSD 4XB7A08492 B2XN 8
Table 19. Drive options for internal storage: 3.5-inch hot-swap drives
Description Part number Feature code Maximum supported
3.5-inch hot-swap HDDs - 12 Gbps SAS
ThinkSystem 3.5" 300GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00038 AUU2 12
ThinkSystem 3.5" 600GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00039 AUU3 12
ThinkSystem 3.5" 900GB 15K SAS 12Gb Hot Swap 512e HDD 7XB7A00040 AUUC 12
3.5-inch hot-swap HDDs - 12 Gbps NL SAS
ThinkSystem 3.5" 1TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00041 AUU4 12
ThinkSystem 3.5" 2TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00042 AUU5 12
ThinkSystem 3.5" 4TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00043 AUU6 12
ThinkSystem 3.5" 6TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00044 AUU7 12
ThinkSystem 3.5" 8TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00045 B0YR 12
ThinkSystem 3.5" 10TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00046 AUUG 12
ThinkSystem 3.5" 12TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00067 B117 12
3.5-inch hot-swap HDDs - 6 Gbps NL SATA
ThinkSystem 3.5" 1TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00049 AUUF 12
ThinkSystem 3.5" 2TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00050 AUUD 12
ThinkSystem 3.5" 4TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00051 AUU8 12
ThinkSystem 3.5" 6TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00052 AUUA 12
ThinkSystem 3.5" 8TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00053 AUU9 12
ThinkSystem 3.5" 10TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00054 AUUB 12
ThinkSystem 3.5" 12TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00068 B118 12
3.5-inch hot-swap SEDs - 12 Gbps NL SAS
ThinkSystem 3.5" 4TB 7.2K SAS 12Gb Hot Swap 512n HDD FIPS 7XB7A00047 AUUH 12
3.5-inch hot-swap SSDs - PM1635a Mainstream 12 Gbps SAS
ThinkSystem 3.5" PM1635a 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A10188 B2XD 12
ThinkSystem 3.5" PM1635a 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A10187 B2XE 12
3.5-inch hot-swap SSDs - 5100 Mainstream 6 Gbps SATA
ThinkSystem 3.5" 5100 240GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05760 B111 12
ThinkSystem 3.5" 5100 480GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05759 B112 12
ThinkSystem 3.5" 5100 960GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05758 B113 12
ThinkSystem 3.5" 5100 1.92TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05757 B114 12
ThinkSystem 3.5" 5100 3.84TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05756 B115 12
3.5-inch hot-swap SSDs - S4600 Mainstream 6 Gbps SATA
ThinkSystem 3.5" Intel S4600 240GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05718 B0ZT 12
ThinkSystem 3.5" Intel S4600 480GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05717 B0ZU 12
ThinkSystem 3.5" Intel S4600 960GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05716 B0ZV 12
ThinkSystem 3.5" Intel S4600 1.92TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05715 B109 12
3.5-inch hot-swap SSDs - PM1633a Capacity 12 Gbps SAS
ThinkSystem 3.5" PM1633a 3.84TB Capacity SAS 12Gb Hot Swap SSD 4XB7A10173 B2XC 12
3.5-inch hot-swap SSDs - 5100 Entry 6 Gbps SATA
ThinkSystem 3.5" 5100 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A08506 B10S 12
ThinkSystem 3.5" 5100 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A08507 B10T 12
ThinkSystem 3.5" 5100 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A08508 B10U 12
ThinkSystem 3.5" 5100 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A08509 B10V 12
3.5-inch hot-swap SSDs - 5200 Entry 6 Gbps SATA
ThinkSystem 3.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10158 B2X7 12
ThinkSystem 3.5" 5200 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10159 B2X8 12
ThinkSystem 3.5" 5200 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10160 B2X9 12
ThinkSystem 3.5" 5200 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10161 B2XA 12
ThinkSystem 3.5" 5200 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10162 B2XB 12
3.5-inch hot-swap SSDs - PM863a Entry 6 Gbps SATA
ThinkSystem 3.5" PM863a 240GB Entry SATA 6Gb Hot Swap SSD 7N47A00115 AUUS 12
ThinkSystem 3.5" PM863a 480GB Entry SATA 6Gb Hot Swap SSD 7N47A00116 AUUN 12
3.5-inch hot-swap SSDs - S3520 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S3520 240GB Entry SATA 6Gb Hot Swap SSD 7N47A00105 AUUW 12
ThinkSystem 3.5" Intel S3520 480GB Entry SATA 6Gb Hot Swap SSD 7N47A00106 AUUT 12
3.5-inch hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4500 240GB Entry SATA 6Gb Hot Swap SSD 7SD7A05737 B0Z3 12
ThinkSystem 3.5" Intel S4500 480GB Entry SATA 6Gb Hot Swap SSD 7SD7A05736 B0Z4 12
ThinkSystem 3.5" Intel S4500 960GB Entry SATA 6Gb Hot Swap SSD 7SD7A05735 B0Z5 12
ThinkSystem 3.5" Intel S4500 1.92TB Entry SATA 6Gb Hot Swap SSD 7SD7A05734 B0Z6 12
ThinkSystem 3.5" Intel S4500 3.84TB Entry SATA 6Gb Hot Swap SSD 7SD7A05733 B0Z7 12
Table 20. Drive options for internal storage: 2.5-inch hot-swap drives
Description Part number Feature code Maximum supported
2.5-inch hot-swap HDDs - 12 Gbps SAS
ThinkSystem 2.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00024 AULY 16
ThinkSystem 2.5" 300GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00021 AULV 16
ThinkSystem 2.5" 600GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00025 AULZ 16
ThinkSystem 2.5" 600GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00022 AULW 16
ThinkSystem 2.5" 900GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00026 AUM0 16
ThinkSystem 2.5" 900GB 15K SAS 12Gb Hot Swap 512e HDD 7XB7A00023 AULX 16
ThinkSystem 2.5" 1.2TB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00027 AUM1 16
ThinkSystem 2.5" 1.8TB 10K SAS 12Gb Hot Swap 512e HDD 7XB7A00028 AUM2 16
ThinkSystem 2.5" 2.4TB 10K SAS 12Gb Hot Swap 512e HDD 7XB7A00069 B0YS 16
2.5-inch hot-swap HDDs - 12 Gbps NL SAS
ThinkSystem 2.5" 1TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00034 AUM6 16
ThinkSystem 2.5" 2TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00035 AUM7 16
2.5-inch hot-swap HDDs - 6 Gbps NL SATA
ThinkSystem 2.5" 1TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00036 AUUE 16
ThinkSystem 2.5" 2TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00037 AUUJ 16
2.5-inch hot-swap SEDs - 12 Gbps SAS
ThinkSystem 2.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00030 AUM4 16
ThinkSystem 2.5" 600GB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00031 AUM5 16
2.5-inch hot-swap SSDs - Mainstream 12 Gbps SAS
ThinkSystem 2.5" PM1635a 400GB Mainstream SAS 12Gb Hot Swap SSD 7N47A00117 AUMC 16
ThinkSystem 2.5" PM1635a 800GB Mainstream SAS 12Gb Hot Swap SSD 7N47A00118 AUMD 16
ThinkSystem 2.5" PM1635a 1.6TB Mainstream SAS 12Gb Hot Swap SSD 7N47A00119 AVRG 16
2.5-inch hot-swap SSDs - 5100 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5100 240GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05765 B10W 16
ThinkSystem 2.5" 5100 480GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05764 B10X 16
ThinkSystem 2.5" 5100 960GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05763 B10Y 16
ThinkSystem 2.5" 5100 1.92TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05762 B10Z 16
ThinkSystem 2.5" 5100 3.84TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05761 B110 16
2.5-inch hot-swap SSDs - S4600 Mainstream 6 Gbps SATA
ThinkSystem 2.5" Intel S4600 240GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05723 B0ZP 16
ThinkSystem 2.5" Intel S4600 480GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05722 B0ZQ 16
ThinkSystem 2.5" Intel S4600 960GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05721 B0ZR 16
ThinkSystem 2.5" Intel S4600 1.92TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05720 B0ZS 16
2.5-inch hot-swap SSDs - Capacity 12 Gbps SAS
ThinkSystem 2.5" PM1633a 3.84TB Capacity SAS 12Gb Hot Swap SSD 7N47A00121 AUMK 16
ThinkSystem 2.5" PM1633a 7.68TB Capacity SAS 12Gb Hot Swap SSD 7N47A00122 AUML 16
2.5-inch hot-swap SSDs - 5100 Entry 6 Gbps SATA
ThinkSystem 2.5" 5100 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A08502 B10N 16
ThinkSystem 2.5" 5100 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A08503 B10P 16
ThinkSystem 2.5" 5100 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A08504 B10Q 16
ThinkSystem 2.5" 5100 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A08505 B10R 16
2.5-inch hot-swap SSDs - 5200 Entry 6 Gbps SATA
ThinkSystem 2.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10153 B2X2 16
ThinkSystem 2.5" 5200 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10154 B2X3 16
ThinkSystem 2.5" 5200 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10155 B2X4 16
ThinkSystem 2.5" 5200 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10156 B2X5 16
ThinkSystem 2.5" 5200 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10157 B2X6 16
2.5-inch hot-swap SSDs - PM863a Entry 6 Gbps SATA
ThinkSystem 2.5" PM863a 240GB Entry SATA 6Gb Hot Swap SSD 7N47A00111 AUUQ 16
ThinkSystem 2.5" PM863a 480GB Entry SATA 6Gb Hot Swap SSD 7N47A00112 AUM9 16
ThinkSystem 2.5" PM863a 960GB Entry SATA 6Gb Hot Swap SSD 7N47A00113 AVCZ 16
ThinkSystem 2.5" PM863a 1.92TB Entry SATA 6Gb Hot Swap SSD 7N47A00114 AVRC 16
2.5-inch hot-swap SSDs - S3520 Entry 6 Gbps SATA
ThinkSystem 2.5" Intel S3520 240GB Entry SATA 6Gb Hot Swap SSD 7N47A00099 AUM8 16
ThinkSystem 2.5" Intel S3520 480GB Entry SATA 6Gb Hot Swap SSD 7N47A00100 AUUZ 16
2.5-inch hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 2.5" Intel S4500 240GB Entry SATA 6Gb Hot Swap SSD 7SD7A05742 B0YY 16
ThinkSystem 2.5" Intel S4500 480GB Entry SATA 6Gb Hot Swap SSD 7SD7A05741 B0YZ 16
ThinkSystem 2.5" Intel S4500 960GB Entry SATA 6Gb Hot Swap SSD 7SD7A05740 B0Z0 16
ThinkSystem 2.5" Intel S4500 1.92TB Entry SATA 6Gb Hot Swap SSD 7SD7A05739 B0Z1 16
ThinkSystem 2.5" Intel S4500 3.84TB Entry SATA 6Gb Hot Swap SSD 7SD7A05738 B0Z2 16
Table 21. Drive options for internal storage: M.2 non-hot-swap drives
Description Part number Feature code Maximum supported
ThinkSystem M.2 CV1 32GB SATA 6Gbps Non-Hot-Swap SSD 7N47A00129 AUUL 2
ThinkSystem M.2 CV3 128GB SATA 6Gbps Non-Hot-Swap SSD 7N47A00130 AUUV 2

Optical drives

The SR550 server supports the external USB optical drive option listed in the following table.

Table 22. Optical drive
Description Part number Feature code Maximum supported
ThinkSystem External USB DVD RW Optical Disk Drive 7XA7A05926 AVV8 1

The External USB DVD RW Optical Disk Drive supports the following types of media: CD-ROM, CD-R, CD-RW, DVD-R, DVD+R, DVD-ROM, DVD-RW, and DVD+RW.

I/O expansion

The SR550 server supports one LOM card slot and up to six PCIe slots: one PCIe slot on the system planar and up to five PCIe slots with different riser cards installed into two riser sockets on the system planar (one riser socket supports installation of one riser card).

The slot form factors are as follows:

  • LOM card slot
  • Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, half-length (PCIe x16 slot is double-wide)
  • Slot 2: PCIe 3.0 x8; full-height, half-length (not present if the slot 1 is PCIe x16)
  • Slot 3: PCIe 3.0 x8 or ML2 x8; full-height, half-length
  • Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)
  • Slot 5: PCIe 3.0 x16; full-height, half-length
  • Slot 6: PCIe 3.0 x8; full-height, half-length

Notes:

  • Slot 5 requires the second processor to be installed.
  • Slot 4 is not present if the COM Port Upgrade Kit is installed.

The locations of the PCIe slots are shown in the following figure.

Slot locations
Figure 8. Slot locations

Riser 1 supplies slots 1, 2, and 3, and Riser 2 supplies slots 5 and 6. The slots that are available for use depend on the number of riser cards that are installed and whether the second processor is installed, as shown in the following table.

Table 23. Slots available for use
Riser Card 1 Riser Card 2 Slots available for use
One processor
None None LOM, 4
None PCIe x16/x8 LOM, 4, 6
PCIe x8/x8/x8 or PCIe x8/x8/x8ML2 None LOM, 1, 2, 3, 4
PCIe x8/x8/x8 or PCIe x8/x8/x8ML2 PCIe x16/x8 LOM, 1, 2, 3, 4, 6
PCIe x16/x8 None LOM, 1, 3, 4
PCIe x16/x8 PCIe x16/x8 LOM, 1, 3, 4, 6
Two processors
None None LOM, 4
None PCIe x16/x8 LOM, 4, 5, 6
PCIe x8/x8/x8 or PCIe x8/x8/x8ML2 None LOM, 1, 2, 3, 4
PCIe x8/x8/x8 or PCIe x8/x8/x8ML2 PCIe x16/x8 LOM, 1, 2, 3, 4, 5, 6
PCIe x16/x8 None LOM, 1, 3, 4
PCIe x16/x8 PCIe x16/x8 LOM, 1, 3, 4, 5, 6

The following table lists available PCIe riser card options.

Table 24. PCIe riser cards and miscellaneous options
Description Part number Feature code Maximum supported
x8 Riser Card 1 options (Riser card supplies slots 1, 2, and 3)
ThinkSystem SR550/SR590/SR650 x8/x8/x8 PCIe FH Riser 1 Kit 7XH7A02677 AUR4 1
ThinkSystem SR550/SR590/SR650 x8/x8/x8ML2 PCIe FH Riser 1 Kit 7XH7A02680 AUR7 1
x16 Riser Card 1 option (Riser card supplies slots 1 and 3)
ThinkSystem SR550/SR590/SR650 x16/x8 PCIe FH Riser 1 Kit 7XH7A02678 AUR3 1
Riser Card 2 option (Riser card supplies slots 5 and 6)
ThinkSystem SR550/SR590/SR650 (x16/x8)/(x16/x16) PCIe FH Riser 2 Kit 7XH7A02679 AURC 1
Serial port upgrade kit
ThinkSystem COM Port Upgrade Kit 7Z17A02577 AUSL 1

The COM Port Upgrade Kit, part number 7Z17A02577, is used for mounting the external serial port on the rear of the SR550. This option includes the bracket and the cable. The COM Port option is mounted in place of the PCIe slot 4, and the PCIe slot 4 cannot be used.

Network adapters

The SR550 server has two onboard 1 GbE ports (no 10/100 Mb support) and up to two additional onboard 1/10 GbE network ports (no 10/100 Mb support) with optional LOM cards. Onboard ports and LOM cards use the Intel Ethernet Connection X722 1/10 GbE technology integrated into the Intel C622 Platform Controller Hub (PCH). The server also supports ML2 adapters that are installed in the custom ML2 slot provided by an ML2 riser card. The LOM cards support direct connectivity to the XClarity Controller via the Network Controller Sideband Interface (NSCI) for out-of-band systems management.

Note: ML2 network adapters do not support NSCI when used in the SR550 server.

The integrated Intel Ethernet Connection X722 has the following features:

  • Two 1 Gb Ethernet ports (no 10/100 Mb Ethernet support)
  • Two 1/10 Gb Ethernet capable ports (no 10/100 Mb Ethernet support)
  • NIC Teaming (load balancing and failover)
  • DataCenter Bridging
  • iWARP (RDMA over IP)
  • VMDq and SR-IOV virtualization (10 Gb speeds only, 4 PFs, 128 VFs per device)
  • IEEE 802.1q Virtual Local Area Networks (VLANs)
  • NVGRE, VXLAN, IPinGRE, and MACinUDP network virtualization
  • IEEE 802.1Qbg Edge Virtual Bridging
  • TCP, IP, and UDP checksum offload
  • Large Send Offload (LSO) and Generic Send Offload (GSO)
  • Receive Side Scaling (RSS) for TCP and UDP traffic
  • Jumbo frames up to 9.5 Kbytes

The following table lists the network adapters that are supported with the SR550 server.

Table 25. Network adapters
Description Part number Feature code Max
qty#
I/O slots supported
LOM cards - 1 Gb Ethernet
ThinkSystem 1Gb 2-port RJ45 LOM 7ZT7A00544 AUKG 1 LOM slot
LOM cards - 10 Gb Ethernet
ThinkSystem 10Gb 2-port Base-T LOM 7ZT7A00548 AUKL 1 LOM slot
ThinkSystem 10Gb 2-port SFP+ LOM 7ZT7A00546 AUKJ 1* LOM slot
ML2 adapters - 10 Gb Ethernet
Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter 7ZT7A00497 AUKQ 1 3 (ML2)
Emulex VFA5.2 ML2 Dual Port 10GbE SFP+ Adapter 00AG560 AT7U 1* 3 (ML2)
Emulex VFA5.2 ML2 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 01CV770 AU7Z 1* 3 (ML2)
Intel X710-DA2 ML2 2x10GbE SFP+ Adapter 00JY940 ATRH 1* 3 (ML2)
PCIe Low Profile adapters - 1 Gb Ethernet
ThinkSystem NetXtreme PCIe 1Gb 2-Port RJ45 Ethernet Adapter 7ZT7A00482 AUZX 5 / 6 1, 2, 3, 4, 5, 6
ThinkSystem NetXtreme PCIe 1Gb 4-Port RJ45 Ethernet Adapter 7ZT7A00484 AUZV 5 / 6 1, 2, 3, 4, 5, 6
ThinkSystem I350-F1 PCIe 1Gb 1-Port SFP Ethernet Adapter 7ZT7A00533 AUZZ 5 / 6 1, 2, 3, 4, 5, 6
ThinkSystem I350-T2 PCIe 1Gb 2-Port RJ45 Ethernet Adapter 7ZT7A00534 AUZY 5 / 6 1, 2, 3, 4, 5, 6
ThinkSystem I350-T4 PCIe 1Gb 4-Port RJ45 Ethernet Adapter 7ZT7A00535 AUZW 5 / 6 1, 2, 3, 4, 5, 6
PCIe Low Profile adapters - 10 Gb Ethernet
Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter 7ZT7A00496 AUKP 5 / 6 1, 2, 3, 4, 5, 6
Emulex VFA5.2 2x10 GbE SFP+ PCIe Adapter 00AG570 AT7S 5 / 6* 1, 2, 3, 4, 5, 6
Emulex VFA5.2 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 00AG580 AT7T 5 / 6* 1, 2, 3, 4, 5, 6
Intel X550-T2 Dual Port 10GBase-T Adapter 00MM860 ATPX 5 / 6 1, 2, 3, 4, 5, 6
Intel X710-DA2 PCIe 10Gb 2-Port SFP+ Ethernet Adapter 7ZT7A00537 AUKX 5 / 6* 1, 2, 3, 4, 5, 6
PCIe Full Height adapters - 10 Gb Ethernet
Emulex OCe14104B-NX PCIe 10Gb 4-Port SFP+ Ethernet Adapter 7ZT7A00493 AUKN 3 / 3* 1, 2, 3, 5, 6
PCIe Low Profile adapters - Omni-Path
Intel OPA 100 Series Single-port PCIe 3.0 x16 HFA 00WE027 AU0B 1 / 2* 1, 5

# The maximum quantity shown is with one processor / two processors (this does not apply to LOM cards and ML2 adapters).
* The adapter comes without transceivers or cables; for ordering transceivers or cables, see the configuration notes below.

Configuration notes:

  • ML2 network adapters are supported in the ML2 x8 slot 3 supplied by the x8/x8/x8ML2 Riser Card 1 (7XH7A02680).
  • PCIe full-height network adapters are supported in the full-height PCIe x8 and x16 slots supplied by the riser cards 1 and 2.
  • Omni-Path adapters are supported in the full-height PCIe x16 slots supplied by the riser cards 1 and 2.
  • PCIe Low Profile network adapters (except Omni-Path adapters) are supported in the low profile PCIe x8 slot 4 on the system board and full-height PCIe x8 and x16 slots supplied by the riser cards 1 and 2.
  • Some adapters require supported transceivers or DAC cables to be purchased for the adapter. The maximum number of transceivers or cables that are supported per adapter equals the quantity of the adapter ports, and all adapter ports must have the same type of the transceiver or cable selected. The following transceiver and cables can be purchased:

The following table lists transceivers and cables for the 10 GbE SFP+ adapters.

Table 26. Transceivers and cables for 10 GbE SFP+ adapters
Description Part number Feature code
10 GbE SFP+ SR transceivers for 10 GbE SFP+ adapters
Lenovo 10GBASE-SR SFP+ Transceiver 46C3447 5053
Lenovo 10GBASE-LR SFP+ Transceiver 00FE331 B0RJ
Optical cables for 10 GbE SFP+ SR transceivers
Lenovo 0.5m LC-LC OM3 MMF Cable 00MN499 ASR5
Lenovo 1m LC-LC OM3 MMF Cable 00MN502 ASR6
Lenovo 3m LC-LC OM3 MMF Cable 00MN505 ASR7
Lenovo 5m LC-LC OM3 MMF Cable 00MN508 ASR8
Lenovo 10m LC-LC OM3 MMF Cable 00MN511 ASR9
Lenovo 15m LC-LC OM3 MMF Cable 00MN514 ASRA
Lenovo 25m LC-LC OM3 MMF Cable 00MN517 ASRB
Lenovo 30m LC-LC OM3 MMF Cable 00MN520 ASRC
Passive SFP+ DAC cables for 10 GbE SFP+ adapters
Lenovo 0.5m Passive SFP+ DAC Cable 00D6288 A3RG
Lenovo 1m Passive SFP+ DAC Cable 90Y9427 A1PH
Lenovo 1.5m Passive SFP+ DAC Cable 00AY764 A51N
Lenovo 2m Passive SFP+ DAC Cable 00AY765 A51P
Lenovo 3m Passive SFP+ DAC Cable 90Y9430 A1PJ
Lenovo 5m Passive SFP+ DAC Cable 90Y9433 A1PK
Lenovo 7m Passive SFP+ DAC Cable 00D6151 A3RH
Active SFP+ DAC cables for 10 GbE SFP+ adapters*
Lenovo 1m Active DAC SFP+ Cable 00VX111 AT2R
Lenovo 3m Active DAC SFP+ Cable 00VX114 AT2S
Lenovo 5m Active DAC SFP+ Cable 00VX117 AT2T

* The Emulex VFA5.2 ML2 (00AG560 and 01CV770) and PCIe (00AG570 and 00AG580) network adapters do not support active SFP+ DAC cables.

The following table lists cables for the Intel Omni-Path QSFP28 adapters.

Table 27. Cables for Intel Omni-Path QSFP28 adapters
Description Part number Feature code
Passive copper cables for Intel Omni-Path QSFP28 adapters
0.5m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE031 AU0E
0.75m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE035 AU0F
1m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE039 AU0G
1.25m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE043 AU0H
1.5m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE047 AU0J
2m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE051 AU0K
3m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE055 AU0L
Active optical cables for Intel Omni-Path QSFP28 adapters
5m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE059 AU0M
10m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE063 AU0N
15m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE067 AU0P
20m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE071 AU0Q

For more information, see the list of Product Guides in the following categories:

SAS adapters for external storage

The following table lists SAS RAID controllers and HBAs for external storage attachments that are supported by the SR550 server.

Table 28. SAS RAID adapters and HBAs for external storage
Description Part number Feature code Maximum supported* I/O slots supported
12 Gbps SAS RAID adapters
ThinkSystem RAID 930-8e 4GB Flash PCIe 12Gb Adapter 7Y37A01087 AUNQ 4 / 4 1, 2, 3, 4, 5, 6
12 Gbps SAS HBAs
ThinkSystem 430-8e SAS/SATA 12Gb HBA 7Y37A01090 AUNR 5 / 6 1, 2, 3, 4, 5, 6
ThinkSystem 430-16e SAS/SATA 12Gb HBA 7Y37A01091 AUNN 5 / 6 1, 2, 3, 4, 5, 6

* The maximum quantity shown is with one processor / two processors.

Configuration notes:

  • Low profile SAS RAID controllers and HBAs for external storage are supported in the low profile PCIe x8 slot 4 on the system board and full-high PCIe x8 and x16 slots supplied by the riser cards 1 and 2.
  • The total quantity of the RAID 930-8i, 16i, and 8e controllers in the server must not exceed 4 (up to 4 supercapacitors can be mounted in the server).

The following table summarizes features of supported RAID controllers and HBAs for external storage.

Table 29. Features and specifications of the RAID controllers and HBAs for external storage
Feature RAID 930-8e 430-8e HBA 430-16e HBA
Form factor PCIe LP PCIe LP PCIe LP
SAS controller chip SAS3508 SAS3408 SAS3416
Host interface PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 12 Gb SAS 12 Gb SAS 12 Gb SAS
Number of ports 8 8 16
Connector type SFF-8644 x4 SFF-8644 x4 SFF-8644 x4
Number of connectors 2 2 4
Drive interface SAS, SATA SAS, SATA SAS, SATA
Drive type HDD, SSD, SED HDD, SSD, SED* HDD, SSD, SED*
Hot-swap drive support Yes Yes Yes
Number of devices 240 1024 1024
RAID levels 0/1/10/5/50/6/60 None None
JBOD mode Yes Yes Yes
Cache 4 GB None None
Cache protection Flash backup (Included) None None
SED key management (SafeStore) Yes No No
SSD I/O acceleration (FastPath) Yes No No
SSD Caching (CacheCade Pro 2.0) No** No No
Consistency check Yes No No
Patrol read Yes No No
Online capacity expansion Yes No No
Online RAID level migration Yes No No
Global Hot Spare Yes No No
Auto-rebuild Yes No No

* HBAs do not support key management for SEDs; third-party host software is responsible for managing the keys.
** The SSD caching feature has been phased out in the new generation of advanced RAID controllers.

For more information, see the list of Product Guides in the following categories:

Fibre Channel host bus adapters

The following table lists Fibre Channel HBAs supported by the SR550 server.

Table 30. Fibre Channel HBAs
Description Part number Feature code Maximum supported* I/O slots supported
16 Gb Fibre Channel - PCIe
Emulex 16Gb Gen6 FC Single-port HBA 01CV830 ATZU 5 / 6 1, 2, 3, 4, 5, 6
Emulex 16Gb Gen6 FC Dual-port HBA 01CV840 ATZV 5 / 6 1, 2, 3, 4, 5, 6
QLogic 16Gb Enhanced Gen5 FC Single-port HBA 01CV750 ATZB 5 / 6 1, 2, 3, 4, 5, 6
QLogic 16Gb Enhanced Gen5 FC Dual-port HBA 01CV760 ATZC 5 / 6 1, 2, 3, 4, 5, 6
8 Gb Fibre Channel - PCIe (available only in China)
Emulex LPe12002-M8-L PCIe 8Gb 2-Port SFP+ FC HBA 4XC7A08221 B0X0 5 / 6 1, 2, 3, 4, 5, 6
Emulex LPe12000-M8-L PCIe 8Gb 1-Port SFP+ FC HBA 4XC7A08220 B0WZ 5 / 6 1, 2, 3, 4, 5, 6

* The maximum quantity shown is with one processor / two processors.

Configuration note: FC HBAs are supported in the low profile PCIe x8 slot 4 on the system board and full-high PCIe x8 and x16 slots supplied by the riser cards 1 and 2.

For more information, see the list of Product Guides in the Host bus adapters category:
http://lenovopress.com/servers/options/hba#rt=product-guide

Cooling

The SR550 server supports up to four non-hot-swap system fans that provide N+1 cooling redundancy. SR550 server models with one processor include three system fans, and server models with two processors include four system fans.

Power supplies and cables

The SR550 server supports up to two redundant power supplies, and is capable of N+N redundancy depending on the configuration. A second power supply can be added to the models that come with one power supply.

The following table lists the power supply options.

Table 31. Power supplies
Description Part number Feature code Maximum supported
ThinkSystem 550W (230V/115V) Platinum Hot-Swap Power Supply 7N67A00882 AVV2 2
ThinkSystem 750W (230/115V) Platinum Hot-Swap Power Supply 7N67A00883 AVV3 2
ThinkSystem 750W (230V) Titanium Hot-Swap Power Supply 7N67A00884 AVV4 2

General power supply rules are as follows:

  • Minimum of 1 and maximum of 2 power supplies per system.
  • If 2 are installed, power supplies must be identical.
  • Power supplies support AC (Worldwide) and HVDC (China only) power sources.

Important: The Standalone Solution Configuration Tool (SSCT) and Lenovo Data Center Solution Configurator (DCSC) power supply selection rules allow a subset of possible configurations due to power restrictions. Configurations that cannot be built in SSCT or DCSC due to power restrictions may still be supported. To verify support and ensure that the right power supply is chosen for optimal performance, you should always validate your server configuration using the latest version of the Lenovo Capacity Planner:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lcp

The SR550 server ship standard with or without a power cord (model dependent). A hot-swap power supply option ships without a power cord. The following table lists the country-specific line cords and rack power cables that can be ordered for the SR550 server.

Table 32. Power cables
Description Part number Feature code
Rack power cables
1.0m, 10A/125-250V, C13 to IEC 320-C14 Rack Power Cable 00Y3043 A4VP
1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7937 6201
2.0m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08369 6570
2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08366 6311
2.8m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08370 6400
2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable 39Y7938 6204
4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7932 6263
4.3m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08371 6583
Country-specific line cords
Argentina 2.8m, 10A/250V, C13 to IRAM 2073 Line Cord 39Y7930 6222
Argentina 4.3m, 10A/250V, C13 to IRAM 2073 Line Cord 81Y2384 6492
Australia/New Zealand 2.8m, 10A/250V, C13 to AS/NZS 3112 Line Cord 39Y7924 6211
Australia/New Zealand 4.3m, 10A/250V, C13 to AS/NZS 3112 Line Cord 81Y2383 6574
Brazil 2.8m, 10A/250V, C13 to NBR 14136 Line Cord 69Y1988 6532
Brazil 4.3m, 10A/250V, C13 to NBR14136 Line Cord 81Y2387 6404
China 2.8m, 10A/250V, C13 to GB 2099.1 Line Cord 39Y7928 6210
China 4.3m, 10A/250V, C13 to GB 2099.1 Line Cord 81Y2378 6580
Denmark 2.8m, 10A/250V, C13 to DK2-5a Line Cord 39Y7918 6213
Denmark 4.3m, 10A/250V, C13 to DK2-5a Line Cord 81Y2382 6575
Europe 2.8m, 10A/250V, C13 to CEE7-VII Line Cord 39Y7917 6212
Europe 4.3m, 10A/250V, C13 to CEE7-VII Line Cord 81Y2376 6572
India 2.8m, 10A/250V, C13 to IS 6538 Line Cord 39Y7927 6269
India 4.3m, 10A/250V, C13 to IS 6538 Line Cord 81Y2386 6567
Israel 2.8m, 10A/250V, C13 to SI 32 Line Cord 39Y7920 6218
Israel 4.3m, 10A/250V, C13 to SI 32 Line Cord 81Y2381 6579
Italy 2.8m, 10A/250V, C13 to CEI 23-16 Line Cord 39Y7921 6217
Italy 4.3m, 10A/250V, C13 to CEI 23-16 Line Cord 81Y2380 6493
Japan 2.8m, 12A/125V, C13 to JIS C-8303 Line cord 46M2593 6314
Japan 2.8m, 12A/250V, C13 to JIS C-8303 Line Cord 4L67A08357 6533
Japan 4.3m, 12A/125V, C13 to JIS C-8303 Line Cord 39Y7926 6335
Japan 4.3m, 12A/250V, C13 to JIS C-8303 Line Cord 4L67A08362 6495
Korea 2.8m, 12A/250V, C13 to KS C8305 Line Cord 39Y7925 6219
Korea 4.3m, 12A/250V, C13 to KS C8305 Line Cord 81Y2385 6494
South Africa 2.8m, 10A/250V, C13 to SABS 164 Line Cord 39Y7922 6214
South Africa 4.3m, 10A/250V, C13 to SABS 164 Line Cord 81Y2379 6576
Switzerland 2.8m, 10A/250V, C13 to SEV 1011-S24507 Line Cord 39Y7919 6216
Switzerland 4.3m, 10A/250V, C13 to SEV 1011-S24507 Line Cord 81Y2390 6578
Taiwan 2.8m, 10A/125V, C13 to CNS 10917-3 Line Cord 23R7158 6386
Taiwan 2.8m, 10A/250V, C13 to CNS 10917-3 Line Cord 81Y2375 6317
Taiwan 2.8m, 15A/125V, C13 to CNS 10917-3 Line Cord 81Y2374 6402
Taiwan 4.3m, 10A/125V, C13 to CNS 10917-3 Line Cord 4L67A08363 AX8B
Taiwan 4.3m, 10A/250V, C13 to CNS 10917-3 Line Cord 81Y2389 6531
Taiwan 4.3m, 15A/125V, C13 to CNS 10917-3 Line Cord 81Y2388 6530
United Kingdom 2.8m, 10A/250V, C13 to BS 1363/A Line Cord 39Y7923 6215
United Kingdom 4.3m, 10A/250V, C13 to BS 1363/A Line Cord 81Y2377 6577
United States 2.8m, 10A/125V, C13 to NEMA 5-15P Line Cord 90Y3016 6313
United States 2.8m, 10A/250V, C13 to NEMA 6-15P Line Cord 46M2592 A1RF
United States 2.8m, 13A/125V, C13 to NEMA 5-15P Line Cord 00WH545 6401
United States 4.3m, 10A/125V, C13 to NEMA 5-15P Line Cord 4L67A08359 6370
United States 4.3m, 10A/250V, C13 to NEMA 6-15P Line Cord 4L67A08361 6373
United States 4.3m, 13A/125V, C13 to NEMA 5-15P Line Cord 4L67A08360 AX8A

Systems management

The SR550 supports the following systems management tools:

  • Lenovo XClarity Controller
  • Lenovo XClarity Provisioning Manager
  • Lenovo XClarity Essentials
  • Lenovo XClarity Administrator
  • Lenovo XClarity Integrators
  • Lenovo XClarity Energy Manager
  • Lenovo Capacity Planner

Lenovo XClarity Controller

The SR550 server contains Lenovo XClarity Controller (XCC), which provides advanced service-processor control, monitoring, and alerting functions. XClarity Controller offers three functional levels: Standard, Advanced, and Enterprise. By default, the SR550 server includes XClarity Controller Standard features, and it can be upgraded to Advanced or Enterprise functionality by using the Features on Demand (FoD) upgrades.

XClarity Controller Standard offers the following capabilities:

  • Gathering and viewing system information and inventory
  • Monitoring system status and health
  • Alerting and notifications
  • Event logging
  • Configuring network connectivity
  • Configuring security
  • Updating system firmware
  • Configuring server settings and devices
  • Real-time power usage monitoring
  • Remotely controlling server power (Power on, Power off, Restart)
  • Managing FoD activation keys
  • Redirecting serial console via IPMI
  • Capturing the video display contents when an operating system hang condition is detected

XClarity Controller Advanced Upgrade adds the following functionality to the Standard features:

  • Remotely viewing video with graphics resolutions up to 1920x1200 at 60 Hz with 16 bits per pixel
  • Remotely accessing the server using the keyboard and mouse from a remote client
  • Remotely deploying an operating system
  • Syslog alerting
  • Redirecting serial console via SSH
  • Displaying graphics for real-time and historical power usage data and temperature

XClarity Controller Enterprise Upgrade adds the following functionality to the Advanced features:

  • Capping power usage
  • Mapping the ISO and image files located on the local client as virtual drives for use by the server
  • Mounting the remote ISO and image files via HTTPS, SFTP, CIFS, and NFS
  • Collaborating across up to six users of the virtual console
  • Controlling quality and bandwidth usage

The XClarity Controller provides remote server management through industry-standard interfaces:

  • Intelligent Platform Management Interface (IPMI) Version 2.0
  • Simple Network Management Protocol (SNMP) Version 3
  • Common Information Model (CIM)
  • Data Center Manageability Interface (DCMI) Version 1.5
  • Redfish REpresentational State Transfer (REST) API
  • Web browser with HTML5 support
  • Command-line interface
  • Virtual Operator Panel with XClarity Mobile App via the front USB port with XClarity Controller access

Virtual Operator Panel provides quick access to system status, firmware, network, health, and alerts information. With proper authentication, it also allows to configure systems management and network settings and to control system power (Power on, Power off, Restart). The Virtual Operator Panel can be accessed from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access (See Components and connectors).

Note: Depending on the system settings, the front USB port can be assigned to XClarity Controller for management functions, or to the system as a regular USB 2.0 port, or switched between two functions by using the system ID button.

The following table lists the XClarity Controller FoD upgrades.

Table 33. XClarity Controller FoD upgrades
Description Part number Feature code Maximum supported
ThinkSystem XClarity Controller Standard to Advanced Upgrade 4L47A09132 AVUT 1
ThinkSystem XClarity Controller Standard to Enterprise Upgrade None* AUPW 1
ThinkSystem XClarity Controller Advanced to Enterprise Upgrade 4L47A09133 None** 1

* Factory-installed only.
** Field upgrade only.

Configuration notes:

  • For factory-installed upgrades, either Standard to Advanced Upgrade (feature AVUT) or Standard to Enterprise Upgrade (feature AUPW) can be selected, but not both.
  • For field upgrades, the Advanced to Enterprise Upgrade (4L47A09133) requires the Standard to Advanced Upgrade to be activated on the server previously with either the factory-installed feature AVUT or field upgrade 4L47A09132.

Lenovo XClarity Provisioning Manager

Lenovo XClarity Provisioning Manager is a UEFI-embedded GUI application that combines the functions of configuring system setup settings, configuring RAID, and updating applications and firmware. It also enables you to install the supported operating systems and associated device drivers, run diagnostics, and collect service data.

Lenovo XClarity Provisioning Manager has the following features:

  • Automatic hardware detection
  • Collecting and viewing system inventory information
  • Configuring UEFI system setup settings
  • Updating the system firmware
  • Configuring RAID by using the RAID Setup Wizard or Advanced mode
  • Installing an operating system and device drivers automatically or manually
  • Running diagnostics and collecting service data

Lenovo XClarity Essentials

Lenovo offers the following XClarity Essentials software tools that can help you set up, use, and maintain the server at no additional cost:

  • Lenovo XClarity Essentials OneCLI

    OneCLI is a collection of server management tools that utilize a command line interface program to manage firmware, hardware, and operating systems. It provides functions to collect full system health information (including health status), configure system setting, and update system firmware and drivers.

  • Lenovo XClarity Essentials UpdateXpress

    The UpdateXpress tool is a standalone GUI application for firmware and device driver updates that enables you to maintain your server firmware and device drivers up-to-date and help you avoid unnecessary server outages. The tool acquires and deploys individual updates and UpdateXpress System Packs (UXSPs) which are integration-tested bundles.

  • Lenovo XClarity Essentials Bootable Media Creator

    The Bootable Media Creator (BOMC) tool is used to create bootable media for offline firmware update.

For more information and downloads, visit the Lenovo XClarity Essentials web page:
http://support.lenovo.com/us/en/documents/LNVO-center

Lenovo XClarity Administrator

Lenovo XClarity is a centralized systems management solution that helps administrators deliver infrastructure faster. This solution integrates easily with Lenovo x86 servers, RackSwitch switches, and DS Series storage, providing automated agent-less discovery, monitoring, firmware updates, configuration management, and bare metal deployment of operating systems and hypervisors across multiple servers.

Lenovo XClarity Administrator is an optional software component for the SR550 server which can be downloaded and used at no charge to discover and monitor the SR550 and manage firmware upgrades for them.

If software support is required for Lenovo XClarity Administrator, or Lenovo XClarity Administrator premium features (such as configuration management and operating system deployment) are required, or both, Lenovo XClarity Pro software subscription should be ordered. Lenovo XClarity Pro is licensed on a per managed system basis, that is, each managed Lenovo system requires a license.

The following table lists the geo-specific Lenovo XClarity software license options.

Table 34. Lenovo XClarity software options
Description Part number
(NA, AP, Japan)*
Part number
(EMEA, LA)**
Quantity
Lenovo XClarity Pro, per Mngd Server w/1 Yr SW S&S 00MT201 00MT207 1
Lenovo XClarity Pro, per Mngd Server w/3 Yr SW S&S 00MT202 00MT208 1
Lenovo XClarity Pro, per Mngd Server w/5 Yr SW S&S 00MT203 00MT209 1

* NA = North America; AP = Asia Pacific
** EMEA = Europe, Middle East, Africa; LA = Latin America

Lenovo XClarity Administrator offers the following standard features that are available at no charge:

  • Auto-discovery and monitoring of Lenovo x86 servers, RackSwitch switches, Flex System chassis, and DS Series storage systems
  • Firmware updates and compliance enforcement
  • External alerts and notifications via SNMP traps, syslog remote logging, and e-mail
  • Secure connections to managed endpoints
  • NIST 800-131A or FIPS 140-2 compliant cryptographic standards between the management solution and managed endpoints
  • Integration into existing higher level management systems such as cloud automation and orchestration tools through REST APIs, providing extensive external visibility and control over hardware resources
  • An intuitive, easy-to-use GUI
  • Scripting with Windows PowerShell, providing command-line visibility and control over hardware resources

Lenovo XClarity Administrator offers the following premium features that require an optional Pro license:

  • Pattern-based configuration management that allows to define configurations once and apply repeatedly without errors when deploying new servers or redeploying existing servers without disrupting the fabric
  • Bare-metal deployment of operating systems and hypervisors to streamline infrastructure provisioning

For more information, refer to the Lenovo XClarity Administrator Product Guide:
http://lenovopress.com/tips1200

Lenovo XClarity Integrators

Lenovo offers at no charge (if software support is required, a Lenovo XClarity Pro software subscription license should be ordered) two software plug-in modules, Lenovo XClarity Integrators, to manage physical infrastructure from leading external virtualization management software tools from Microsoft and VMware:

  • Lenovo XClarity Integrator for Microsoft System Center
  • Lenovo XClarity Integrator for VMware vCenter

Lenovo XClarity Integrators offer the following additional features:

  • Ability to discover, manage, and monitor Lenovo server hardware from VMware vCenter or Microsoft System Center
  • Deployment of firmware updates and configuration patterns to Lenovo x86 rack servers and Flex System from the virtualization management tool
  • Non-disruptive server maintenance in clustered environments that reduces workload downtime by dynamically migrating workloads from affected hosts during rolling server updates or reboots
  • Greater service level uptime and assurance in clustered environments during unplanned hardware events by dynamically triggering workload migration from impacted hosts when impending hardware failures are predicted

For more information, refer to the Lenovo xClarity Integrators web page:
http://www3.lenovo.com/us/en/data-center/software/systems-management/xclarity-integrators

Lenovo XClarity Energy Manager

Lenovo XClarity Energy Manager provides a stand-alone, web-based agent-less power management console that provides real time data and enables you to observe, plan and manage power and cooling for Lenovo servers. Using built-in intelligence, it identifies server power consumption trends and ideal power settings and performs cooling analysis so that you can define and optimize power-saving policies.

Lenovo XClarity Energy Manager offers the following capabilities:

  • Monitors room, row, rack, and device levels in the data center
  • Reports vital server information, such as power, temperature and resource utilization
  • Monitors inlet temperature to locate hot spots, reducing the risk of data or device damage
  • Provides finely-grained controls to limit platform power in compliance with IT policy
  • Generates alerts when a user-defined threshold is reached

Lenovo XClarity Energy Manager is an optional software component for the SR550 server that is licensed on a per managed node basis, that is, each managed server requires a license. The 1-node Energy Manager license is included in the XClarity Controller Enterprise upgrade.

To manage systems without XClarity Controller Enterprise licenses, a node license pack should be purchased. The following table lists the geo-specific Lenovo XClarity Energy Manager software license options.

Table 35. Lenovo XClarity Energy Manager software options
Description Part number
(NA, AP, Japan)*
Part number
(EMEA, LA)**
Quantity
Lenovo XClarity Energy Manager, 1 Node w/ 1 Yr S&S 01DA225 01DA228 1

* NA = North America; AP = Asia Pacific.
** EMEA = Europe, Middle East, Africa; LA = Latin America.

For more information, refer to the Lenovo XClarity Energy Manager web page:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lxem

Lenovo Capacity Planner

Lenovo Capacity Planner is a power consumption evaluation tool that enhances data center planning by enabling IT administrators and pre-sales professionals to understand various power characteristics of racks, servers, and other devices. Capacity Planner can dynamically calculate the power consumption, current, British Thermal Unit (BTU), and volt-ampere (VA) rating at the rack level, improving the planning efficiency for large scale deployments.

For more information, refer to the Capacity Planner web page:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lcp

Security

The SR550 server offers the following security features:

  • Power-on password
  • Administrator's password
  • Secure firmware updates
  • Onboard Trusted Platform Module (TPM) version 1.2 or 2.0 (configurable UEFI system setting)
  • Trusted Cryptographic Module (TCM) (optional; available in China only)
  • Nationz Trusted Platform Module v2.0 (optional; available in China only)
  • Lockable front bezel (optional)
  • Security Key Lifecycle Manager (SKLM) encryption key management for SEDs - FoD upgrade (optional)
  • Lenovo Business Vantage security software (optional; available in China only)

The following table lists the security options that are available for the SR550 server.

Table 36. Security options
Description Part number Feature code Maximum supported
Lockable front bezel
ThinkSystem 2U Security Bezel 7Z17A02580 AURX 1
Trusted Cryptographic Module (China only)
ThinkSystem Trusted Cryptographic Module None* AVKE 1
Trusted Platform Module (China only)
ThinkSystem Nationz Trusted Platform Module v2.0 None* B22N 1
Security Key Lifecycle Manager - FoD (United States, Canada, Asia Pacific, and Japan)
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/1Yr S&S 00D9998 A5U1 1
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/3Yr S&S 00D9999 AS6C 1
Security Key Lifecycle Manager - FoD (Latin America, Europe, Middle East, and Africa)
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/1Yr S&S 00FP648 A5U1 1
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/3Yr S&S 00FP649 AS6C 1

* Factory-installed only; no field upgrade.

Lenovo Business Vantage is a security software tool suite (available only in China) designed to work with the Trusted Cryptographic Module (TCM) adapter for enhanced security, to keep user data safe, and to erase confidential data completely from a hard disk drive.

Lenovo Business Vantage provides the following features:

  • Encrypts files to ensure data safety by using the TCM.
  • Erases confidential data from a hard disk.
  • Prohibits unauthorized access to the USB port of devices.
  • Encrypts files to ensure data security on a USB storage device.

For more information, refer to the Lenovo Business Vantage web page:
http://support.lenovo.com.cn/lenovo/wsi/es/es.html

Rack installation

The following table lists the rack installation options that are available for the SR550 server.

Table 37. Rack installation options
Description Part number Feature code Maximum supported
4-post rail kits
ThinkSystem Tool-less Slide Rail 7M27A05702 AXCA 1
ThinkSystem Tool-less Slide Rail Kit with 2U CMA 7M27A05700 AXCH 1
ThinkSystem Screw-in Slide Rail 4M17A07274 AXFN 1
ThinkSystem Screw-in Slide Rail Kit with 2U CMA 4M17A07280 B0TD 1
ThinkSystem Tool-less Friction Rail 4M17A07273 AXFM 1
Cable management arm (CMA) upgrade
ThinkSystem 2U CMA Upgrade Kit for Tool-less Slide Rail 7M27A05698 None^ 1*
ThinkSystem 2U CMA Upgrade Kit for Screw-in Slide Rail 4M17A07275 AXFU 1**
Front VGA port
ThinkSystem SR550/SR590/SR650 EIA Latch w/ VGA Upgrade Kit 7Z17A02578 AUS8 1

^ Field upgrade only.
* The CMA Upgrade Kit for Tool-less Slide Rail is supported with the Tool-less Slide Rail (7M27A05702) only.
** The CMA Upgrade Kit for Screw-in Slide Rail is supported with the Screw-in Slide Rail (4M17A07274) only.

The following table summarizes the rail kit features and specifications.

Table 38. Rail kit features and specifications summary
Feature Tool-less Slide Rail Screw-in Slide Rail Tool-less Friction Rail
Without CMA With CMA Without CMA With CMA
Part number 7M27A05702 7M27A05700 4M17A07274 4M17A07280 4M17A07273
CMA 7M27A05698 Included 4M17A07275 Included  No support
Rail length 730 mm
(28.74 in.)
807 mm
(31.8 in.)
836.8 mm
(32.9 in.)
836.8 mm
(32.9 in.)
728.1 mm
(28.7 in.)
Rail type Full-out slide (ball bearing) Full-out slide (ball bearing) Half-out slide (friction)
Tool-less installation Yes No Yes
In-rack server maintenance Yes Yes No
1U PDU support Yes Yes Yes
0U PDU support Limited* Limited* Limited**
Rack type IBM and Lenovo 4-post,
IEC standard-compliant
IBM and Lenovo 4-post,
IEC standard-compliant
IBM and Lenovo 4-post,
IEC standard-compliant
Mounting holes Square or round Square, round, or threaded Square or round
Mounting flange thickness 2 mm (0.08 in.) –
3.3 mm (0.13 in.)
2 mm (0.08 in.) –
3.3 mm (0.13 in.)
2 mm (0.08 in.) –
3.3 mm (0.13 in.)
Distance between front
and rear mounting flanges^
609.6 mm (24 in.) –
863.6 mm (34 in.)
609.6 mm (24 in.) –
812.8 mm (32 in.)
609.6 mm (24 in.) –
863.6 mm (34 in.)

* If a 0U PDU is used, the rack cabinet must be at least 1100 mm (43.31 in.) deep if no CMA is used, or at least 1200 mm (47.24 in.) deep if a CMA is used.
** If a 0U PDU used, the rack must be at least 1000 mm (39.37 in.) deep.
^ Measured when mounted on the rack, from the front surface of the front mounting flange to the rear most point of the rail.

Operating systems

The SR550 server supports the following operating systems:

  • Microsoft:
    • Microsoft Windows Server, version 1709
    • Microsoft Windows Server 2016
    • Microsoft Windows Server 2012 R2
  • Red Hat:
    • Red Hat Enterprise Linux 7.5
    • Red Hat Enterprise Linux 7.4
    • Red Hat Enterprise Linux 7.3
    • Red Hat Enterprise Linux 6.9 Server x64 Edition
  • SUSE:
    • SUSE Linux Enterprise Server 12 SP3
    • SUSE Linux Enterprise Server 12 SP2
    • SUSE Linux Enterprise Server 11 for AMD64/EM64T SP4
  • VMware:
    • VMware vSphere 6.7 (ESXi)
    • VMware vSphere 6.5 (ESXi) Update 1
    • VMware vSphere 6.5 (ESXi)
    • VMware vSphere 6.0 (ESXi) Update 3

Important: The onboard Intel RSTe is not supported by virtualization hypervisors, including VMware vSphere (ESXi), Linux KVM, Xen, and Microsoft Hyper-V.

For the latest information about the specific versions and service levels that are supported and any other prerequisites, see the Operating System Interoperability Guide: http://lenovopress.com/redposig.

Physical specifications

The SR550 server has the following dimensions and weight (approximate):

  • Height: 87 mm (3.4 in.)
  • Width: 445 mm (17.5 in.)
  • Depth: 720 mm (28.3 in.)
  • Weight:
    • Minimum configuration: 19 kg (41.9 lb)
    • Maximum configuration: 26 kg (57.3 lb)

Operating environment

The SR550 server complies with ASHRAE class A2 specifications. The server performance might be impacted when the operating temperature is outside the ASHRAE A2 specifications. Depending on the hardware configuration, some server models comply with ASHRAE class A3 and class A4 specifications. To comply with ASHRAE class A3 and class A4 specifications, the server models must meet the following hardware configuration requirements at the same time:

  • Two power supplies must be installed
  • No system fan fails

The SR550 server is supported in the following environment:

  • Air temperature:
    • Operating:
      • ASHRAE Class A4: 5 °C - 45 °C (41 °F - 113 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 125-m (410-ft) increase in altitude
      • ASHRAE Class A3: 5 °C - 40 °C (41 °F - 104 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 175-m (574-ft) increase in altitude
      • ASHRAE Class A2: 10 °C - 35 °C (50 °F - 95 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 300-m (984-ft) increase in altitude
    • Non-operating: 5 °C - 45 °C (41 °F - 113 °F)
    • Storage: -40 °C - +60 °C (-40 °F - 140 °F)
  • Maximum altitude: 3,050 m (10,000 ft)
  • Humidity:
    • Operating:
      • ASHRAE Class A4: 8% - 90% (non-condensing); maximum dew point: 24 °C (75 °F)
      • ASHRAE Class A3: 8% - 85% (non-condensing); maximum dew point: 24 °C (75 °F)
      • ASHRAE Class A2: 8% - 80% (non-condensing); maximum dew point: 21 °C (70 °F)
    • Storage: 8% - 90% (non-condensing)
  • Electrical:
    • 100 - 127 (nominal) V AC; 50 Hz / 60 Hz
    • 200 - 240 (nominal) V AC; 50 Hz / 60 Hz
    • 180 - 300 V DC (HVDC; supported in China only)
  • Acoustics:
    • Minimum configuration:
      • Operating: 5.5 bels
      • Idle: 4.9 bels
    • Maximum configuration:
      • Operating: 6.8 bels
      • Idle: 6.1 bels
  • Vibration:
    • Operating: 0.21 G rms at 5 Hz to 500 Hz for 15 minutes across 3 axes
    • Non-operating: 1.04 G rms at 2 Hz to 200 Hz for 15 minutes across 6 surfaces
  • Shock:
    • Operating: 15 G for 3 milliseconds in each direction (positive and negative X, Y, and Z axes)
    • Non-operating:
      • 12 kg - 22 kg: 50 G for 152 in./sec velocity change across 6 surfaces
      • 23 kg  - 31 kg: 35 G for 152 in./sec velocity change across 6 surfaces

The following table lists the maximum system power load, rated inlet current, and system heat output based on the power supply and source voltage.

Table 39. Rated system power, inlet current, and system heat output
Power supply Source voltage Maximum power
load per system
(two power supplies)
Rated current
per inlet
System
heat output
550W Platinum 100 - 127 V AC 722 W 6.2 A 2463 BTU/hour
200 - 240 V AC 704 W 3 A 2402 BTU/hour
180 - 300 V DC 702 W 2.5 A 2395 BTU/hour
750W Platinum 100 - 127 V AC 984 W 8.4 A 3357 BTU/hour
200 - 240 V AC 958 W 4.1 A 3269 BTU/hour
180 - 300 V DC 958 W 3.5 A 3269 BTU/hour
750W Titanium 200 - 240 V AC 949 W 4.1 A 3238 BTU/hour
180 - 300 V DC 948 W 3.5 A 3235 BTU/hour

Warranty services and upgrades

The SR550 server has a one-year (7X03) or three-year (Machine Type 7X04) customer-replaceable unit (CRU) and onsite limited (for field-replaceable units [FRUs] only) warranty with standard call center support during normal business hours and 9x5 Next Business Day Parts Delivered.

Some countries might have different warranty terms and conditions than the standard warranty. This is due to local business practices or laws in the specific country. Local service teams can assist in explaining country-specific terms when needed. Examples of country-specific warranty terms are second or longer business day parts delivery or parts-only base warranty.

If warranty terms and conditions include onsite labor for repair or replacement of parts, Lenovo will dispatch a service technician to the customer site to perform the replacement. Onsite labor under base warranty is limited to labor for replacement of parts that have been determined to be field-replaceable units (FRUs). Parts that are determined to be customer-replaceable units (CRUs) do not include onsite labor under base warranty.

If warranty terms include parts-only base warranty, Lenovo is responsible for delivering only replacement parts that are under base warranty (including FRUs) that will be sent to a requested location for self-service. Parts-only service does not include a service technician being dispatched onsite. Parts must be changed at customer’s own cost and labor and defective parts must be returned following the instructions supplied with the spares parts.

Also available are Lenovo Services warranty maintenance upgrades and post-warranty maintenance agreements, with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.

Lenovo warranty service upgrade offerings are country-specific. Not all warranty service upgrades are available in every country. For information about Lenovo warranty service upgrade offerings that are available in your country or area, refer to the following resources:

In general, the following Lenovo warranty service upgrades are available:

  • Warranty and maintenance service upgrades:
    • 3, 4, or 5 years of warranty service coverage
    • 1-year or 2-year post-warranty extensions
    • Foundation Service: 9x5 service coverage with next business day onsite response
    • Essential Service: 24x7 service coverage with 4-hour onsite response or 24-hour committed repair (available only in select countries)
    • Advanced Service: 24x7 service coverage with 2-hour onsite response or 6-hour committed repair (available only in select countries)
  • Premier Support

    Premier Support service offers single point of contact for end-to-end problem resolution and collaborative third-party software support with direct access to Lenovo’s most advanced technicians for faster troubleshooting.

  • YourDrive YourData

    Lenovo’s YourDrive YourData service is a multi-drive retention offering that ensures your data is always under your control, regardless of the number of drives that are installed in your Lenovo server. In the unlikely event of a drive failure, you retain possession of your drive while Lenovo replaces the failed drive part. Your data stays safely on your premises, in your hands. The YourDrive YourData service can be purchased in convenient bundles with Foundation, Essential, or Advanced Service upgrades and extensions.

  • Enterprise Server Software Support

    Lenovo Enterprise Server Software Support can help you troubleshoot your entire server software stack. Choose support for server operating systems from Microsoft, Red Hat, SUSE, and VMware; Microsoft server applications; or both operating systems and applications. Support staff can help answer troubleshooting and diagnostic questions, address product compatibility and interoperability issues, isolate causes of problems, report defects to software vendors, and more.

  • Basic Hardware Installation Services

    Lenovo experts can seamlessly manage the physical installation of your server, storage, or networking hardware. Working at a time convenient for you (business hours or off shift), the technician will unpack and inspect the systems on your site, install options, mount in a rack cabinet, connect to power and network, check and update firmware to the latest levels, verify operation, and dispose of the packaging, allowing your team to focus on other priorities.

For service definitions, country-specific details, and service limitations, please refer to the following documents:

Regulatory compliance

The SR550 server conforms to the following regulations:

  • United States FCC Part 15, Class A
  • Canada ICES-003/NMB-03, Class A
  • UL/CSA 60950-1
  • Mexico NOM-019
  • Argentina IEC60950-1
  • Japan VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22, Class A
  • China CCC GB4943.1, GB9254 Class A, GB17625.1
  • Taiwan BSMI CNS13438, Class A; CNS14336-1
  • Korea KN22, Class A; KN24
  • Russia/GOST ME01; IEC-60950-1; GOST R 51318.22, 51318.24, 51317.3.2, and 51317.3.3
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • Europe CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
  • CISPR 22, Class A
  • Germany TUV-GS (EN60950-1 /IEC60950-1,EK1-ITB2000)
  • Reduction of Hazardous Substances (ROHS)
  • Energy Star 2.1

External drive enclosures

The following table lists the 12 Gbps SAS external drive enclosures that are offered by Lenovo that can be used with the SR550 for storage expansion.

Note: Information provided in this section is for ordering reference purposes only. For the operating system and adapter support details, refer to the interoperability matrix for a particular storage enclosure that can be found on the Lenovo Data Center Support web site:
http://datacentersupport.lenovo.com

Table 40. External drive enclosures
Description Part number
D1212 LFF Relationship models
D1212 LFF Chassis, Dual 3-port ESMs (US English documentation) 4587A11*
D1212 LFF Chassis, Dual 3-port ESMs (Simplified Chinese documentation) 4587A1C^
D1212 LFF Chassis, Dual 3-port ESMs (Japanese documentation) 4587A1J**
D1212 LFF TopSeller models - Brazil and Latin America
D1212 LFF Chassis, Dual 3-port ESMs, 4x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EAU
D1212 LFF Chassis, Dual 3-port ESMs, 4x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EBU
D1212 LFF Chassis, Dual 3-port ESMs, 4x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587ECU
D1212 LFF Chassis, Dual 3-port ESMs, 4x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587EDU
D1212 LFF Chassis, Dual 3-port ESMs, 8x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EEU
D1212 LFF Chassis, Dual 3-port ESMs, 8x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EFU
D1212 LFF Chassis, Dual 3-port ESMs, 8x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587EGU
D1212 LFF Chassis, Dual 3-port ESMs, 8x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587EHU
D1212 LFF Chassis, Dual 3-port ESMs, 12x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EIU
D1212 LFF Chassis, Dual 3-port ESMs, 12x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EJU
D1212 LFF Chassis, Dual 3-port ESMs, 12x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587EKU
D1212 LFF Chassis, Dual 3-port ESMs, 12x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587ELU
D1212 LFF TopSeller models - North America (NA) and Europe, Middle East, and Africa (EMEA)
Lenovo Storage D1212 LFF Dual ESM Disk Expansion Enclosure (US English documentation) 4587E11
D1224 SFF Relationship models
D1224 SFF Chassis, Dual 3-port ESMs (US English documentation) 4587A31*
D1224 SFF Chassis, Dual 3-port ESMs (Simplified Chinese documentation) 4587A3C^
D1224 SFF Chassis, Dual 3-port ESMs (Japanese documentation) 4587A3J**
D1224 SFF TopSeller models - Brazil and Latin America
D1224 SFF Chassis, Dual 3-port ESMs, 9x 1.2TB 10K HDDs, 4x 0.5m SAS cables 4587E6U
D1224 SFF Chassis, Dual 3-port ESMs, 9x 1.2TB 10K HDDs, 2x 400GB SSDs, 4x 0.5m SAS cables 4587E2U
D1224 SFF Chassis, Dual 3-port ESMs, 9x 1.2TB 10K HDDs, 4x 400GB SSDs, 4x 0.5m SAS cables 4587E4U
D1224 SFF Chassis, Dual 3-port ESMs, 18x 1.2TB 10K HDDs, 1x 0.5m SAS cable 4587E5U
D1224 SFF Chassis, Dual 3-port ESMs, 18x 1.2TB 10K HDDs, 2x 400GB SSDs, 4x 0.5m SAS cables 4587E1U
D1224 SFF Chassis, Dual 3-port ESMs, 18x 1.2TB 10K HDDs, 4x 400GB SSDs, 4x 0.5m SAS cables 4587E3U
D1224 SFF TopSeller models - North America (NA) and Europe, Middle East, and Africa (EMEA)
Lenovo Storage D1224 SFF Dual ESM Disk Expansion Enclosure (US English documentation) 4587E31
D3284 Relationship models
Lenovo Storage D3284 4TB x 84 HD Expansion Enclosure 641311F
Lenovo Storage D3284 6TB x 84 HD Expansion Enclosure 641312F
Lenovo Storage D3284 8TB x 84 HD Expansion Enclosure 641313F
Lenovo Storage D3284 10TB x 84 HD Expansion Enclosure 641314F
D3284 TopSeller models
Lenovo Storage D3284 High Density Expansion Enclosure 6413E5F
Lenovo Storage D3284 4TB x 42 HD Expansion Enclosure 6413E1H
Lenovo Storage D3284 4TB x 84 HD Expansion Enclosure 6413E1F
Lenovo Storage D3284 6TB x 42 HD Expansion Enclosure 6413E2H
Lenovo Storage D3284 6TB x 84 HD Expansion Enclosure 6413E2F
Lenovo Storage D3284 8TB x 42 HD Expansion Enclosure 6413E3H
Lenovo Storage D3284 8TB x 84 HD Expansion Enclosure 6413E3F
Lenovo Storage D3284 10TB x 42 HD Expansion Enclosure 6413E4H
Lenovo Storage D3284 10TB x 84 HD Expansion Enclosure 6413E4F

* Available worldwide (except China and Japan)
^ Available only in China
** Available only in Japan

For details about supported drives, adapters, and cables, see the Lenovo Press Product Guides:

External storage systems

The following table lists the external storage systems that are currently offered by Lenovo that can be used with the SR550 in IT solutions.

Note: Information provided in this section is for ordering reference purposes only. End-to-end storage configuration support must be verified through the interoperability matrix for a particular storage system that can be found on the Lenovo Data Center Support web site:
http://datacentersupport.lenovo.com

Table 41. External storage systems
Description Part number
Lenovo ThinkSystem DS Series Storage (SAS connectivity)
Lenovo ThinkSystem DS2200 LFF SAS Dual Controller Unit (US English documentation) 4599A41*
Lenovo ThinkSystem DS2200 LFF SAS Dual Controller Unit (Simplified Chinese documentation) 4599A4C^
Lenovo ThinkSystem DS2200 LFF SAS Dual Controller Unit (Japanese documentation) 4599A4J**
Lenovo ThinkSystem DS2200 SFF SAS Dual Controller Unit (US English documentation) 4599A21*
Lenovo ThinkSystem DS2200 SFF SAS Dual Controller Unit (Simplified Chinese documentation) 4599A2C^
Lenovo ThinkSystem DS2200 SFF SAS Dual Controller Unit (Japanese documentation) 4599A2J**
Lenovo ThinkSystem DS4200 LFF SAS Dual Controller Unit (US English documentation) 4617A41*
Lenovo ThinkSystem DS4200 LFF SAS Dual Controller Unit (Simplified Chinese documentation) 4617A4C^
Lenovo ThinkSystem DS4200 LFF SAS Dual Controller Unit (Japanese documentation) 4617A4J**
Lenovo ThinkSystem DS4200 SFF SAS Dual Controller Unit (US English documentation) 4617A21*
Lenovo ThinkSystem DS4200 SFF SAS Dual Controller Unit (Simplified Chinese documentation) 4617A2C^
Lenovo ThinkSystem DS4200 SFF SAS Dual Controller Unit (Japanese documentation) 4617A2J**
Lenovo ThinkSystem DS6200 SFF SAS Dual Controller Unit (US English documentation) 4619A21*
Lenovo ThinkSystem DS6200 SFF SAS Dual Controller Unit (Simplified Chinese documentation) 4619A2C^
Lenovo ThinkSystem DS6200 SFF SAS Dual Controller Unit (Japanese documentation) 4619A2J**
Lenovo ThinkSystem DS Series Storage (iSCSI or FC connectivity)
Lenovo ThinkSystem DS2200 LFF FC/iSCSI Dual Controller Unit (US English documentation) 4599A31*
Lenovo ThinkSystem DS2200 LFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation) 4599A3C^
Lenovo ThinkSystem DS2200 LFF FC/iSCSI Dual Controller Unit (Japanese documentation) 4599A3J**
Lenovo ThinkSystem DS2200 SFF FC/iSCSI Dual Controller Unit (US English documentation) 4599A11*
Lenovo ThinkSystem DS2200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation) 4599A1C^
Lenovo ThinkSystem DS2200 SFF FC/iSCSI Dual Controller Unit (Japanese documentation) 4599A1J**
Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (US English documentation) 4617A31*
Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation) 4617A3C^
Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (Japanese documentation) 4617A3J**
Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (US English documentation) 4617A11*
Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation) 4617A1C^
Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (Japanese documentation) 4617A1J**
Lenovo ThinkSystem DS6200 SFF FC/iSCSI Dual Controller Unit (US English documentation) 4619A11*
Lenovo ThinkSystem DS6200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation) 4619A1C^
Lenovo Storage V Series (SAS [except V7000/V7000F], iSCSI, or FC connectivity)
Lenovo Storage V3700 V2 LFF Control Enclosure 6535C1D
Lenovo Storage V3700 V2 LFF Control Enclosure (TopSeller) 6535EC1
Lenovo Storage V3700 V2 SFF Control Enclosure 6535C2D
Lenovo Storage V3700 V2 SFF Control Enclosure (TopSeller) 6535EC2
Lenovo Storage V3700 V2 XP LFF Control Enclosure 6535C3D
Lenovo Storage V3700 V2 XP LFF Control Enclosure (TopSeller) 6535EC3
Lenovo Storage V3700 V2 XP SFF Control Enclosure 6535C4D
Lenovo Storage V3700 V2 XP SFF Control Enclosure (TopSeller) 6535EC4
Lenovo Storage V5030 LFF Control Enclosure 3Yr S&S 6536C12
Lenovo Storage V5030 LFF Control Enclosure 5Yr S&S 6536C32
Lenovo Storage V5030 SFF Control Enclosure 3Yr S&S 6536C22
Lenovo Storage V5030 SFF Control Enclosure 5Yr S&S 6536C42
Lenovo Storage V5030F SFF Control Enclosure 3Yr S&S 6536B1F
Lenovo Storage V5030F SFF Control Enclosure 5Yr S&S 6536B2F
Lenovo Storage V7000 SFF Control Enclosure 3Yr S&S PRC 6538R11^
Lenovo Storage V7000 SFF Control Enclosure 5Yr S&S PRC 6538R21^
Lenovo Storage V7000F SFF Control Enclosure 3Yr S&S PRC 6538R1G^
Lenovo Storage V7000F SFF Control Enclosure 5Yr S&S PRC 6538R2G^
IBM Storwize for Lenovo (SAS [except V7000], iSCSI, or FC connectivity)
IBM Storwize V3500 3.5-inch Dual Control Storage Controller Unit 6096CU2^
IBM Storwize V3500 2.5-inch Dual Control Storage Controller Unit 6096CU3^
IBM Storwize V7000 SFF Control Enclosure, 3YR SWMA 6195C32†
IBM Storwize V7000 SFF Control Enclosure, 3YR SWMA, LA 6195C3L‡
IBM Storwize V7000 SFF Control Enclosure, 5YR SWMA 6195C52†
IBM Storwize V7000 SFF Control Enclosure, 5YR SWMA, LA 6195C5L‡
Lenovo Storage DX8200 Series (NAS or iSCSI connectivity; optional FC connectivity)
Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 3yr SW S&S 5135A3x#
Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 4yr SW S&S 5135J3x#
Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 5yr SW S&S 51351Wx#
Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 3yr SW S&S 5135B3x#
Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 4yr SW S&S 5135L3x#
Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 5yr SW S&S 51352Wx#
Lenovo Storage DX8200D Storage Virtualization High, 64TB, 3yr SW S&S 5135C3x#
Lenovo Storage DX8200D Storage Virtualization High, 64TB, 4yr SW S&S 5135M3x#
Lenovo Storage DX8200D Storage Virtualization High, 64TB, 5yr SW S&S 51353Wx#
Lenovo Storage DX8200D ServerSAN Entry, 8TB, 3yr SW S&S 5135D3x#
Lenovo Storage DX8200D ServerSAN Entry, 8TB, 4yr SW S&S 5135N3x#
Lenovo Storage DX8200D ServerSAN Entry, 8TB, 5yr SW S&S 51354Wx#
Lenovo Storage DX8200D ServerSAN Mid, 16TB, 3yr SW S&S 5135F3x#
Lenovo Storage DX8200D ServerSAN Mid, 16TB, 4yr SW S&S 5135P3x#
Lenovo Storage DX8200D ServerSAN Mid, 16TB, 5yr SW S&S 51355Wx#
Lenovo Storage DX8200D ServerSAN High, 32TB, 3yr SW S&S 5135G3x#
Lenovo Storage DX8200D ServerSAN High, 32TB, 4yr SW S&S 5135Q3x#
Lenovo Storage DX8200D ServerSAN High, 32TB, 5yr SW S&S 51356Wx#
Lenovo Storage DX8200N with 1x N2226 HBA (Requires a supported external drive enclosure) 5128C1x#
Lenovo Storage DX8200N with 2x N2226 HBAs (Requires a supported external drive enclosure) 5128C2x#
Lenovo Storage DX8200C Series (S3 cloud storage)
Lenovo Storage DX8200C 56TB (14x 4TB HDDs) with Cloudian HyperStore - 3yr HW/SW S&S 5120D1x#
Lenovo Storage DX8200C 84TB (14x 6TB HDDs) with Cloudian HyperStore - 3yr HW/SW S&S 5120D2x#
Lenovo Storage DX8200C 112TB (14x 8TB HDDs) with Cloudian HyperStore - 3yr HW/SW S&S 5120D3x#
Lenovo Storage DX8200C 140TB (14x 10TB HDDs) with Cloudian HyperStore - 3yr HW/SW S&S 5120D4x#
Lenovo Storage DX8200C 168TB (14x 12TB HDDs) with Cloudian HyperStore - 3yr HW/SW S&S 5120D5x#

* Available worldwide (except China and Japan).
^ Available only in China.
** Available only in Japan.
† Available worldwide except Latin America.
‡ Available only in Latin America.
# x represents a geo-specific letter (for example: U = North America, G = EMEA). Ask a Lenovo representative for specifics.

For more information, see the list of Product Guides in the following categories:

External backup units

The following table lists the external backup options that are offered by Lenovo that can be used with the SR550 in IT solutions.

Note: Information provided in this section is for ordering reference purposes only. End-to-end LTO Ultrium configuration support for a particular tape backup unit must be verified through the System Storage Interoperation Center (SSIC):
http://www.ibm.com/systems/support/storage/ssic

Table 42. External backup options
Description Part number
External SAS tape backup drives
IBM TS2250 Tape Drive Model H5S 6160S5E
IBM TS2260 Tape Drive Model H6S 6160S6E
IBM TS2270 Tape Drive Model H7S 6160S7E
External SAS tape backup autoloaders
IBM TS2900 Tape Autoloader w/LTO5 HH SAS 6171S5R
IBM TS2900 Tape Autoloader w/LTO6 HH SAS 6171S6R
IBM TS2900 Tape Autoloader w/LTO7 HH SAS 6171S7R
External tape backup libraries
IBM TS3100 Tape Library Model L2U 61732UL
IBM TS3200 Tape Library Model L4U 61734UL
SAS backup drives for TS3100 and TS3200 Tape Libraries
6173 LTO Ultrium 5 SAS Drive Sled 00NA109
6173 LTO Ultrium 5 Half High SAS Drive Sled 00NA111
6173 LTO Ultrium 6 Half High SAS Drive Sled 00NA117
6173 LTO Ultrium 7 Half High SAS Drive Sled 00WF767
Fibre Channel backup drives for TS3100 and TS3200 Tape Libraries (LPe12000/LPe12002 only)
6173 LTO Ultrium 5 Fibre Channel Drive 00NA107
6173 LTO Ultrium 5 Half High Fibre Drive Sled 00NA113
6173 LTO Ultrium 6 Fibre Channel Drive 00NA115
6173 LTO Ultrium 6 Half High Fibre Drive Sled 00NA119
6173 LTO Ultrium 7 Fibre Channel Drive 00WF765
6173 LTO Ultrium 7 Half High Fibre Drive Sled 00WF769

For more information, see the list of Product Guides in the Backup units category:
https://lenovopress.com/servers/options/backup#rt=product-guide

Ethernet LAN switches

The following table lists the Ethernet LAN switches that are offered by Lenovo that can be used with the SR550 server in IT solutions.

Table 43. Ethernet LAN switches
Description Part number
1 Gb Ethernet switches
Juniper EX2300-C PoE Switch 7165H1X
Juniper EX2300-24p PoE Switch 7165H2X
Lenovo RackSwitch G7028 (Rear to Front) 7159BAX
Lenovo RackSwitch G7052 (Rear to Front) 7159CAX
Lenovo RackSwitch G8052 (Rear to Front) 7159G52
10 Gb Ethernet switches
Lenovo ThinkSystem NE1032 RackSwitch (Rear to Front) 7159A1X
Lenovo ThinkSystem NE1032T RackSwitch (Rear to Front) 7159B1X
Lenovo ThinkSystem NE1072T RackSwitch (Rear to Front) 7159C1X
Lenovo RackSwitch G8124E (Rear to Front) 7159BR6
Lenovo RackSwitch G8264 (Rear to Front) 7159G64
Lenovo RackSwitch G8264CS (Rear to Front) 7159DRX
Lenovo RackSwitch G8272 (Rear to Front) 7159CRW
Lenovo RackSwitch G8296 (Rear to Front) 7159GR6
25 Gb Ethernet switches
Lenovo ThinkSystem NE2572 RackSwitch (Rear to Front) 7159E1X
40 Gb Ethernet switches
Lenovo RackSwitch G8332 (Rear to Front) 7159BRX
100 Gb Ethernet switches
Lenovo ThinkSystem NE10032 RackSwitch (Rear to Front) 7159D1X

For more information, see the list of Product Guides in the Top-of-rack Switches category:
http://lenovopress.com/servers/options/switches#rt=product-guide

Fibre Channel SAN switches

The following table lists currently available Fibre Channel SAN switches that are offered by Lenovo that can be used with the SR550 in IT solutions.

Table 44. Fibre Channel SAN switches
Description Part number
8 Gb FC
Lenovo B300, 8 ports activated, 8x 8Gb SWL SFPs, 1 PS, Rail Kit 3873AR3
Lenovo B6505, 12 ports activated, 12x 8Gb SWL SFPs, 1 PS, Rail Kit 3873AR4
Lenovo B6510, 24 ports activated, 24x 8Gb SWL SFPs, 2 PS, Rail Kit 3873BR2
16 Gb FC
Lenovo ThinkSystem DB610S, 8 ports activated, 8x 16Gb SWL SFPs, 1 PS, Rail Kit 6559D2Y
Lenovo ThinkSystem DB610S, 24 ports activated, 24x 16Gb SWL SFP, Enterprise SW, 1 PS, Rail Kit 6559D1Y
Lenovo B6505, 12 ports activated w/ 16Gb SWL SFPs, 1 PS, Rail Kit 3873AR5
Lenovo B6510, 24 ports activated w/ 16Gb SWL SFPs, 2 PS, Rail Kit 3873BR3
32 Gb FC
Lenovo ThinkSystem DB610S, 8 ports activated, 1 PS, Rail Kit 6559D3Y
Lenovo ThinkSystem DB620S, 24 Ports Activated, 24x 32Gb SWL SFPs, 2 PS, Rail Kit 6415G11
Lenovo ThinkSystem DB620S, 48 Ports Activated, 48x 32Gb SWL SFPs, 2 PS, Rail Kit 6415G2A
Lenovo ThinkSystem DB400D 32Gb FC Director, up to 192 ports, 8U, Enterprise SW 6684B2A
Lenovo ThinkSystem DB800D 32Gb FC Director, up to 384 ports, 14U, Enterprise SW 6682B1A

For more information, see the list of Product Guides in the Rack SAN Switches category:
http://lenovopress.com/storage/switches/rack#rt=product-guide

Rack cabinets

The following table lists the rack cabinets that are offered by Lenovo that can be used with the SR550 server in IT solutions.

Table 45. Rack cabinets
Description Part number
25U S2 Standard Rack (1000 mm deep; 2 sidewall compartments) 93072RX
25U Static S2 Standard Rack (1000 mm deep; 2 sidewall compartments) 93072PX
42U S2 Standard Rack (1000 mm deep; 6 sidewall compartments) 93074RX
42U 1100mm Enterprise V2 Dynamic Rack (6 sidewall compartments) 93634PX
42U 1100mm Enterprise V2 Dynamic Expansion Rack (6 sidewall compartments) 93634EX
42U 1200mm Deep Dynamic Rack (6 sidewall compartments) 93604PX
42U 1200mm Deep Static Rack (6 sidewall compartments) 93614PX
42U Enterprise Rack (1105 mm deep; 4 sidewall compartments) 93084PX
42U Enterprise Expansion Rack (1105 mm deep; 4 sidewall compartments) 93084EX

For more information, see the list of Product Guides in the Rack cabinets category:
http://lenovopress.com/servers/options/racks#rt=product-guide

KVM switches and consoles

The following table lists the KVM switches and consoles that are offered by Lenovo that can be used with the SR550 server in IT solutions.

Table 46. KVM switch and console options
Description Part number
Consoles
1U 18.5" Standard Console (without keyboard) 17238BX
Console keyboards
ThinkSystem Keyboard w/ Int. Pointing Device USB - Arabic 253 RoHS v2 7ZB7A05469
ThinkSystem Keyboard w/ Int. Pointing Device USB - Belg/UK 120 RoHS v2 7ZB7A05468
ThinkSystem Keyboard w/ Int. Pointing Device USB - Czech 489 RoHS v2 7ZB7A05206
ThinkSystem Keyboard w/ Int. Pointing Device USB - Danish 159 RoHS v2 7ZB7A05207
ThinkSystem Keyboard w/ Int. Pointing Device USB - Dutch 143 RoHS v2 7ZB7A05208
ThinkSystem Keyboard w/ Int. Pointing Device USB - Fr/Canada 445 RoHS v2 7ZB7A05210
ThinkSystem Keyboard w/ Int. Pointing Device USB - French 189 RoHS v2 7ZB7A05209
ThinkSystem Keyboard w/ Int. Pointing Device USB - German 129 RoHS v2 7ZB7A05211
ThinkSystem Keyboard w/ Int. Pointing Device USB - Greek 219 RoHS v2 7ZB7A05212
ThinkSystem Keyboard w/ Int. Pointing Device USB - Hebrew 212 RoHS v2 7ZB7A05213
ThinkSystem Keyboard w/ Int. Pointing Device USB - Hungarian 208 RoHS v2 7ZB7A05214
ThinkSystem Keyboard w/ Int. Pointing Device USB - Italian 141 RoHS v2 7ZB7A05215
ThinkSystem Keyboard w/ Int. Pointing Device USB - Japanese 194 RoHS v2 7ZB7A05216
ThinkSystem Keyboard w/ Int. Pointing Device USB - Korean 413 RoHS v2 7ZB7A05217
ThinkSystem Keyboard w/ Int. Pointing Device USB - LA Span 171 RoHS v2 7ZB7A05218
ThinkSystem Keyboard w/ Int. Pointing Device USB - Norwegian 155 RoHS v2 7ZB7A05219
ThinkSystem Keyboard w/ Int. Pointing Device USB - Polish 214 RoHS v2 7ZB7A05220
ThinkSystem Keyboard w/ Int. Pointing Device USB - Portugese 163 RoHS v2 7ZB7A05221
ThinkSystem Keyboard w/ Int. Pointing Device USB - Russian 441 RoHS v2 7ZB7A05222
ThinkSystem Keyboard w/ Int. Pointing Device USB - Slovak 245 RoHS v2 7ZB7A05223
ThinkSystem Keyboard w/ Int. Pointing Device USB - Slovenian 234 RoHS v2 7ZB7A05231
ThinkSystem Keyboard w/ Int. Pointing Device USB - Spanish 172 RoHS v2 7ZB7A05224
ThinkSystem Keyboard w/ Int. Pointing Device USB - Swed/Finn 153 RoHS v2 7ZB7A05225
ThinkSystem Keyboard w/ Int. Pointing Device USB - Swiss F/G 150 RoHS v2 7ZB7A05226
ThinkSystem Keyboard w/ Int. Pointing Device USB - Thai 191 RoHS v2 7ZB7A05227
ThinkSystem Keyboard w/ Int. Pointing Device USB - Trad Chinese/US 467 RoHS v2 7ZB7A05467
ThinkSystem Keyboard w/ Int. Pointing Device USB - Turkish 179 RoHS v2 7ZB7A05228
ThinkSystem Keyboard w/ Int. Pointing Device USB - UK Eng 166 RoHS v2 7ZB7A05229
ThinkSystem Keyboard w/ Int. Pointing Device USB - US Eng 103P RoHS v2 7ZB7A05470
ThinkSystem Keyboard w/ Int. Pointing Device USB - US Euro 103P RoHS v2 7ZB7A05230
Console switches
Global 4x2x32 Console Manager (GCM32) 1754D2X
Global 2x2x16 Console Manager (GCM16) 1754D1X
Local 2x16 Console Manager (LCM16) 1754A2X
Local 1x8 Console Manager (LCM8) 1754A1X
Console cables
Single Cable USB Conversion Option (UCO) 43V6147
USB Conversion Option (4 Pack UCO) 39M2895
Virtual Media Conversion Option Gen2 (VCO2) 46M5383
Serial Conversion Option (SCO) 46M5382

For more information, see the list of Product Guides in the KVM Switches and Consoles category:
http://lenovopress.com/servers/options/kvm#rt=product-guide

Power distribution units

The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used with the SR550 server in IT solutions.

Table 47. Power distribution units
Description Part number
0U Basic PDUs
0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord 00YJ776
0U 36 C13/6 C19 32A/200-240V 1 Phase PDU with IEC60309 332P6 line cord 00YJ777
0U 21 C13/12 C19 32A/200-240V/346-415V 3 Phase PDU with IEC60309 532P6 line cord 00YJ778
0U 21 C13/12 C19 48A/200-240V 3 Phase PDU with IEC60309 460P9 line cord 00YJ779
Switched and Monitored PDUs
0U 20 C13/4 C19 Switched and Monitored 24A/200-240V/1Ph PDU w/ NEMA L6-30P line cord 00YJ781
0U 20 C13/4 C19 Switched and Monitored 32A/200-240V/1Ph PDU w/ IEC60309 332P6 line cord 00YJ780
0U 18 C13/6 C19 Switched / Monitored 32A/200-240V/346-415V/3Ph PDU w/ IEC60309 532P6 cord 00YJ782
0U 12 C13/12 C19 Switched and Monitored 48A/200-240V/3Ph PDU w/ IEC60309 460P9 line cord 00YJ783
1U 9 C19/3 C13 Switched and Monitored DPI PDU (without line cord) 46M4002
1U 9 C19/3 C13 Switched and Monitored 60A 3Ph PDU with IEC 309 3P+Gnd cord 46M4003
1U 12 C13 Switched and Monitored DPI PDU (without line cord) 46M4004
1U 12 C13 Switched and Monitored 60A 3 Phase PDU with IEC 309 3P+Gnd line cord 46M4005
Ultra Density Enterprise PDUs (9x IEC 320 C13 + 3x IEC 320 C19 outlets)
Ultra Density Enterprise C19/C13 PDU Module (without line cord) 71762NX
Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph with IEC 309 3P+Gnd line cord 71763NU
C13 Enterprise PDUs (12x IEC 320 C13 outlets)
DPI C13 Enterprise PDU+ (without line cord) 39M2816
DPI Single Phase C13 Enterprise PDU (without line cord) 39Y8941
C19 Enterprise PDUs (6x IEC 320 C19 outlets)
DPI Single Phase C19 Enterprise PDU (without line cord) 39Y8948
DPI 60A 3 Phase C19 Enterprise PDU with IEC 309 3P+G (208 V) fixed line cord 39Y8923
Front-end PDUs (3x IEC 320 C19 outlets)
DPI 30amp/125V Front-end PDU with NEMA L5-30P line cord 39Y8938
DPI 30amp/250V Front-end PDU with NEMA L6-30P line cord 39Y8939
DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8934
DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8940
DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8935
Universal PDUs (7x IEC 320 C13 outlets)
DPI Universal 7 C13 PDU (with 2 m IEC 320-C19 to C20 rack power cord) 00YE443
NEMA PDUs (6x NEMA 5-15R outlets)
DPI 100-127V PDU with fixed NEMA L5-15P line cord 39Y8905
Line cords for PDUs that ship without a line cord
DPI 30a Line Cord (NEMA L6-30P) 40K9614
DPI 32a Line Cord (IEC 309 P+N+G) 40K9612
DPI 32a Line Cord (IEC 309 3P+N+G) 40K9611
DPI 60a Cord (IEC 309 2P+G) 40K9615
DPI 63a Cord (IEC 309 P+N+G) 40K9613
DPI Australian/NZ 3112 Line Cord (32A) 40K9617
DPI Korean 8305 Line Cord (30A) 40K9618

For more information, see the list of Product Guides in the PDU category:
http://lenovopress.com/servers/options/pdu#rt=product-guide

Uninterruptible power supply units

The following table list the uninterruptible power supply (UPS) units that are currently offered by Lenovo that can be used with the SR550 in IT solutions.

Table 48. Uninterruptible power supply units
Description Part number
RT1.5kVA 2U Rack or Tower UPS (100-125VAC) (8x NEMA 5-15R 12A outlets) 55941AX
RT1.5kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A outlets) 55941KX
RT2.2kVA 2U Rack or Tower UPS (100-125VAC) (8x NEMA 5-20R 16A outlets) 55942AX
RT2.2kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 1x IEC 320 C19 16A outlets) 55942KX
RT3kVA 2U Rack or Tower UPS (100-125VAC) (6x NEMA 5-20R 16A, 1x NEMA L5-30R 24A outlets) 55943AX
RT3kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 1x IEC 320 C19 16A outlets) 55943KX
RT5kVA 3U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 2x IEC 320 C19 16A outlets) 55945KX
RT6kVA 3U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 2x IEC 320 C19 16A outlets) 55946KX
RT8kVA 6U Rack or Tower UPS (200-240VAC) (4x IEC 320-C19 16A outlets) 55948KX
RT11kVA 6U Rack or Tower UPS (200-240VAC) (4x IEC 320-C19 16A outlets) 55949KX
RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) (4x IEC 320-C19 16A outlets) 55948PX
RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) (4x IEC 320-C19 16A outlets) 55949PX

For more information, see the list of Product Guides in the Uninterruptible Power Supply Units category:
http://lenovopress.com/servers/options/ups#rt=product-guide

Lenovo Financial Services

Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world.

We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses.

We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience.

We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice.

Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements. For you, this dedication provides a high-quality, easy, and positive financing experience.

For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website:
http://www.lenovofs.com

Thuộc tính sản phẩm
Processor Bronze
Hard Drive 2.5-inch
Nhận xét của bạn
  • Only registered users can write reviews
*
*
  • Tệ
  • Xuất sắc
