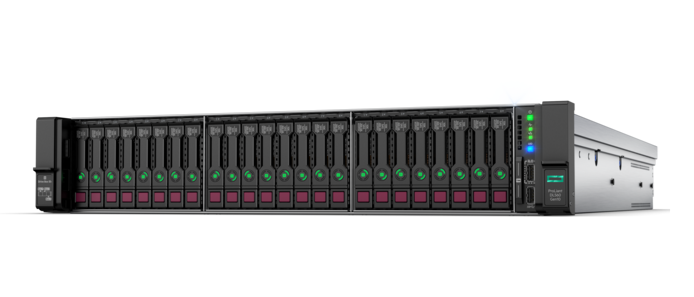

HPE ProLiant DL385 G10 SFF EPYC - 7401

HPE ProLiant DL385 Gen10 Server

The HPE ProLiant DL385 Gen10 Server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7xx2 Series Processors , the HPE ProLiant DL385 Gen10 Server offers greater processing power and faster memory speeds upto 2933 MT/s. This 2P, 2U server has been designed with flexibility while delivering a high maximum core count and large memory footprint. Choose this purpose-built platform for virtualization.

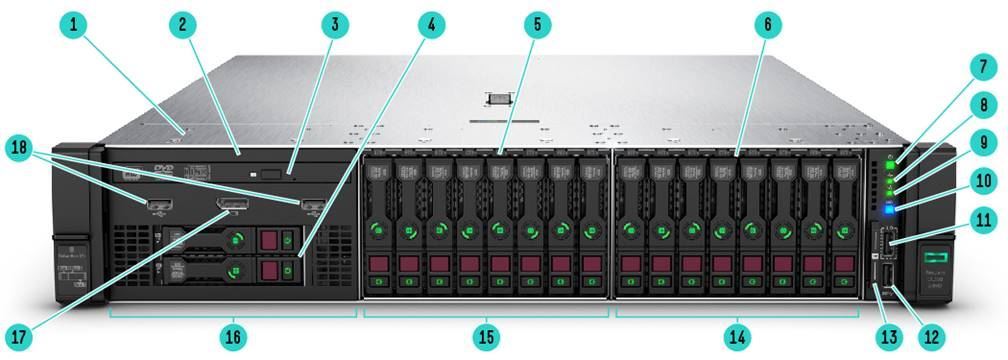

HPE ProLiant DL385 Gen10 Server - Front View

SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown

1

Quick removal access panel

10

UID button

2

Drive Bay 1. Optional Universal Media bay. 2 USB 2.0 and Display port standard shown (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)

11

iLO Front Service Port

3

Optional Optical drive. Requires Universal Media bay

12

USB 3.0

4

Optional 2 SFF HDD, requires optional Universal Media bay

13

Serial label pull tag

5

Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)

14

Box 3

6

Drive Bay 3. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)

15

Box 2

7

Power On/Standby button and system power LED button

16

Box 1

8

Health LED

17

Optional front display port (Via Universal Media Bay)

9

NIC status

18

Optional USB 2.0 (via Universal Media Bay)

HPE ProLiant DL385 Gen10 Server - Front View

8LFF chassis with Universal media bay and optional 2SFF and optical drive shown

1

Unit ID button

6

iLO Front Service Port

2

Health LED

7

Serial label pull tag

3

NIC status

8

Optional optical drive shown (blank as standard)

4

Power On/Standby button and system power LED button

9

Optional 2 SFF Drive bay, 2 NVMe shown

5

Front display port

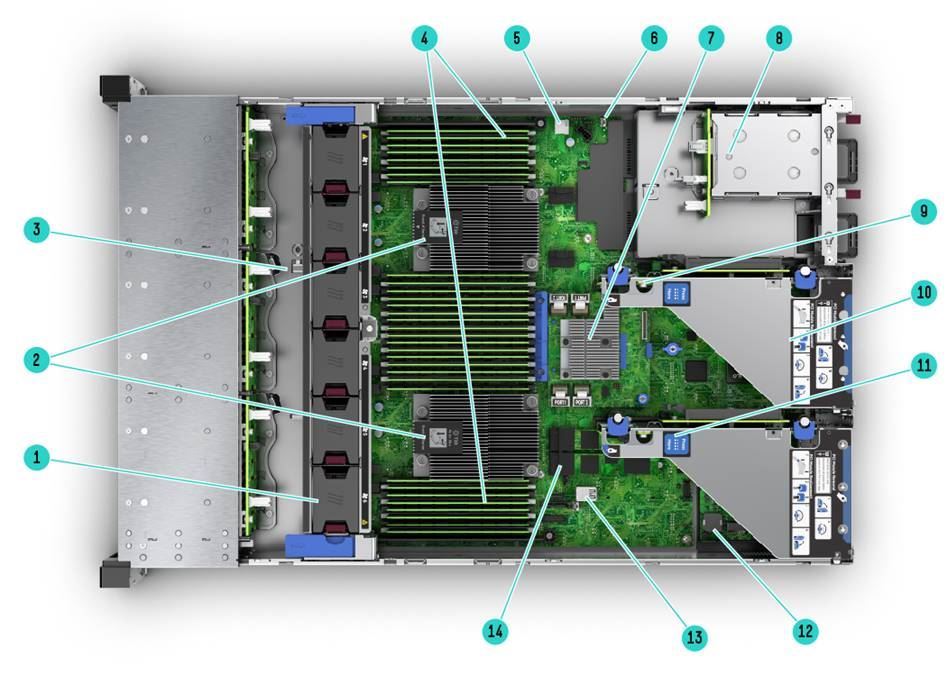

HPE ProLiant DL385 Gen10 Server - Internal View

8SFF chassis with optional 2^nd CPU, FlexLOM, Smart array shown

1.

Fan cage shown with 6 standard Hot-plug fans

(High Performance fans optional)

8

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

2.

2 Processors (heatsinks shown)

9

Connection for second (optional) riser (Requires second CPU)

3

Optional HPE Smart Storage Battery (not shown)

10

**Embedded 4x1Gbe NIC (if equipped)

4.

DDR4 DIMM slots. Shown fully populated in 32 slots

(16 per processor)

11

Primary PCIe riser, standard (Optional double wide GPU riser)

5

MicroSD card slot (Optional Dual Micro-SD option)

12

Optional Flexible LOM slot

6

Chassis intrusion detection connector

13

Internal USB 3.0 connector

7

Optional HPE Flexible Smart Array Controller

(P408i-a shown)

14.

Embedded M.2 connectors

NOTE:: **Embedded 4x 1GbE Adapter is not equipped on new boards for 7xx2 series processors

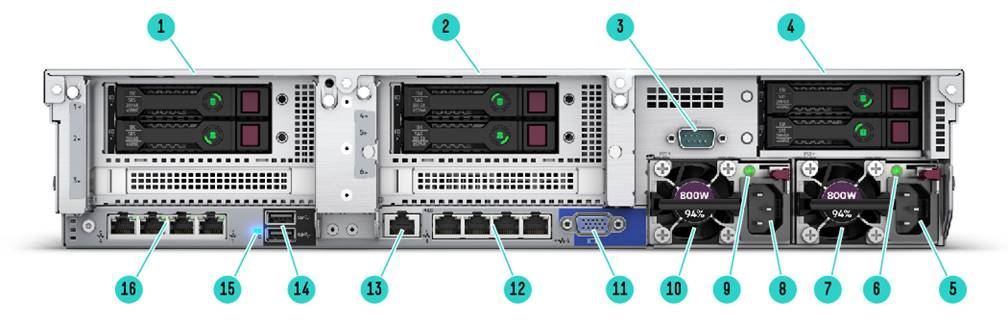

HPE ProLiant DL385 Gen10 Server - Rear View

With optional FlexLOM, Rear drives and Serial port shown

1

Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown) Optional 2SFF rear drives

9

Power supply Power LED Bay 2

2

Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Optional 2 SFF rear drives

10

HPE Flexible Slot Power Supply Bay 2

3

Optional serial port

11

VGA connector

4

Tertiary Riser (Slots 7-8 top to bottom, not shown). Optional rear 2 SFF HDD

12

**Embedded 4 x 1GbE Network Adapter( if equipped)

5

Power supply power connection.  Bay 1

13

Dedicated iLO management port

6

Power supply Power LED.  Bay1

14

USB connectors 3.0 (2)

7

HPE Flexible Slot Power Supply. Bay 1

15

Unit ID LED

8

Power supply Power connection Bay 2

16

Optional FlexibleLOM ports (Shown: 4 x 1GbE)

NOTE: **Embedded 4x 1GbE Adapter is not equipped on new boards for 7xx2 series processors

What’s New:

· New 2933 Memory DIMMs with capacity upto 128 GB

· New Disk Cartridge Options

· Supports the next generation AMD EPYC 7xx2 Series processor with double the core density compared to the previous  generation and memory speeds up to 2933 MT/s.

· Embedded 4x 1GbE LOM is not supported with 7xx2 series processors

· Two new SMB Base SKU ( BTO) offerings

· New SAS & SATA Solid State Drives

· New NVME Solid State Drives

· European Union (EU) Lot 9 regulation, please visit:

· https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information

Platform Information

Form Factor

2U rack

Chassis Types

· 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options

· 24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives

· 8 LFF with Universal Media Bay

· 12 LFF with optional 4 LFF mid-plane and optional 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives

NOTE: The 3 LFF rear drive box will consume space for the secondary and tertiary riser.

NOTE: The 8 and 12 LFF chassis also supports the 2 SFF rear drive box which allows for the user to attach a secondary or tertiary

riser.

NOTE: The 8 NVMe drive option (826689-B21) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3.

NOTE: The Premium cage (826690-B21, 6 SAS/SATA+2 NVMe) can only be leveraged in the SFF chassis and replaces Box 1, 2

or 3.

NOTE: The Universal Media Bay (882097-B21) not available with the LFF chassis or the 24 SFF front end, and can only be populated in Box 1.

NOTE: The 8 SFF can be upgraded with additional 8SFF drive box to total 16 or 24 SFF drives. For optimal upgrade Box 2 should

be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF. For CTO builds requiring 24 SFF please

use the 24 SFF chassis (878613-B21). Note a field upgrade to 24 SFF will require a High Performance fan kit (867810-B21).

NOTE: The 8 LFF chassis cannot be upgraded to 12 LFF front in the field; however the 4-LFF Mid plane (882096-B21) is supported, but will also require a performance fan kit (867810-B21).

NOTE: CPU selection is limited 125W or lower with 4LFF midtray selected.

NOTE: The 8LFF chassis ships with 6-standard fans.

NOTE: All models come with the S100i Smart Array Controller  with embedded software RAID support for the 2 embedded M.2

drive connectors on the system board.

System Fans

Standard – fan types included

NOTE: 1P models ship with 4 standard fans. The second processor option kit contains 2 additional fans.

NOTE: The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.

NOTE: The 8LFF chassis ships with 6 standard fans as standard.

NOTE: High performance fan kit is available to meet ambient temperature environments.

NOTE: High performance fan kits are required for rear drives, Graphics (GPU) card, 180w Processors SKUs or NVMe configurations.

Standard Features

Processors Up to 2 of the following depending on model.

NOTE: For more information regarding AMD EPYC processors, please see the following: https://www.amd.com/en/products/epyc.

NOTE: All AMD EPYC processors can support up to 2TB of memory each.

Chipset

No chipset – System on Chip (SoC) design.

On System Management Chipset

HPE iLO 5 ASIC

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

Type:

HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)

· DIMM Slots Available

- 32

16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel

NOTE: The maximum memory speed is limited by the processor selection.

NOTE: Mixing of RDIMM and LRDIMM memory is not supported.

NOTE: When 2DIMMs are populated per channel, memory speed drops to 2133MT/S

NOTE: The maximum memory speed is limited by the processor selection.

NOTE: Mixing of RDIMM and LRDIMM memory is not supported.

NOTE: When 2DIMMs are populated per channel, memory speed drops to 2666 MT/S

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: Tertiary riser (other options available) can be leveraged without secondary riser.

NOTE: Bus width indicated the number of physical electrical lanes running to the connector.

Storage Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.One of the following depending on model

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

NOTE: The S100i supports the 2 M.2 system board connectors. .

Essential RAID Controller

· HPE Smart Array E208i-a SR Gen10 Controller

· HPE Smart Array E208i-p SR Gen10 Controller

· HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

· HPE Smart Array P408i-a SR Gen10 Controller

· HPE Smart Array P408i-p SR Gen10 Controller

· HPE Smart Array P408e-p SR Gen10 Controller

· HPE Smart Array P816i-a SR Gen10 Controller

· HPE Smart Array P824i-p MR Gen10 Controller

NOTE: Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.

Internal Storage Devices

One of the following depending on model

Optical Drive

· Ships standard in Performance Models

· Optional: DVD-ROM, DVD-RW

Hard Drives

· None ship standard

Maximum Internal Storage

NOTE: 2x m.2 drives are supported on the system board.

NOTE: UFF drives are also supported.

Power Supply

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% and 96% efficiency.

NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

NOTE: 240v power input only.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Operating Systems and Virtualization Software Support for ProLiant Servers

AMD® EPYC® 7xx2 Series Processor Family

· Windows Server 2019

· VMware ESXi 6.5 U3

· VMware ESXi 6.7 U3

· Red Hat Enterprise Linux (RHEL) 7.6

· SUSE Linux Enterprise Server (SLES) 12 SP4

· SUSE Linux Enterprise Server (SLES) 15 SP1

AMD® EPYC® 7xx1 Series Processor Family

· Windows Server 2012 R2 (Most Recent Version)

· Windows Server 2016 (Most Recent Version)

· VMware ESXi 6.5 U1, U2, and 6.7

· Red Hat Enterprise Linux (RHEL) 7.4

· SUSE Linux Enterprise Server (SLES) 12 SP3

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.

https://www.hpe.com/us/en/servers/server-operating-systems.html

Industry Standard Compliance

· ACPI 6.1 Compliant

· PCIe 3.0 Compliant

· WOL Support

· Microsoft® Logo certifications

· PXE Support

· VGA/Display Port

NOTE: This support is on the optional Universal Media Bay.

· USB 3.0 Compliant (internal)

· USB 2.0 Compliant (external ports via SUV)

NOTE: This support is on the optional Universal Media Bay.

· Energy Star

· SMBIOS 3.1

· UEFI 2.6

· Redfish API

· IPMI 2.0

· Secure Digital 2.0

· Advanced Encryption Standard (AES)

· Triple Data Encrytion Standard (3DES)

· SNMP v3

· TLS 1.2

· DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

· Active Directory v1.0

· European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

· ASHRAE A3/A4

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

· UEFI (Unified Extensible Firmware Interface Forum)

NOTE: UEFI is the default for the DL385 Gen10. Legacy mode can be selected in the field or as a CTO option  (758959-B22).

Graphics

Integrated Video Standard

· Video modes up to 1920 x 1200@60Hz (32 bpp)

· 16MB Video Memory

HPE iLO 5 on system management memory

· 32 MB Flash

· 4 Gbit DDR 3 with ECC protection

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

NOTE: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

· Secure Boot and Secure Start enable for enhanced security

· Operating system specific functionality

· Support for > 2.2 TB (using GPT) boot drives

· USB 3.0 Stack

HPE Server UEFI/Legacy ROM

· Embedded UEFI Shell

· Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

· PXE boot support for IPv6 networks

Workload Profiles for simple performance optimization

UEFI Boot Mode only:

· TPM 2.0 Support

· NVMe Boot Support

· iSCSI Software Initiator Support.

· HTTP/HTTPs Boot support as a PXE alternative.

· Boot support for option cards that only support a UEFI option ROM

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers  simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).  Learn more at

https://buy.hpe.com/b2c/us/en/enterprise-software/infrastructure-management-software/system-server-management-software/hpe-system-server-software-management-software/smart-update-manager-%28sum%29/p/5182020.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at http://www.hpe.com/info/hpesim.

Security

· UEFI Secure Boot and Secure Start support

· Immutable Silicon Root of Trust

· FIPS 140-2 validation (iLO 5 certification in progress)

· Common Criteria certification (iLO 5 certification in progress)

· Configurable for PCI DSS compliance

· Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

· Support for Commercial National Security Algorithms (CNSA)

· Tamper-free updates – components digitally signed and verified

· Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

· Ability to rollback firmware

· Secure erase of NAND/User data

· TPM (Trusted Platform Module) 1.2 option

· TPM (Trusted Platform Module) 2.0 option

· Bezel Locking Kit option

· Chassis Intrusion detection option

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE iLO Advanced Premium Security Edition

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase. Learn more about HPE iLO Advanced Premium Security Edition at: http://www.hpe.com/servers/ilopremium.

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview.

HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Learn more at https://www.hpe.com/servers/infosight

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

HPE Pointnext - Service and Support

Achieve maximum return from your IT investment

Get the expertise you need at every step of your IT journey with HPE Pointnext services and support. We help you lower your risks and costs using proven best practices, automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally.  With Advisory Services, we focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike

Consume IT on your terms

HPE GreenLake Flex Capacity combines the simplicity, agility, and economics of public cloud with the security and performance benefits of on-premises IT.  You determine your own "Right Mix" of Hybrid IT and workload placement without having to use. With its agile pay-per-use service, HPE GreenLake Flex Capacity can help your IT organization:

· Avoid IT expenses stemming from overprovisioning

· Improve time to market by maintaining a safe buffer of capacity, ready for use when you need it

· Keep capacity ahead of demand with regular monitoring—and a simple change order to replenish

· Pay for only the capacity used, not the capacity deployed

· Reduce IT risk with tailored support

Connect your devices:

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Reduce down time, increase diagnostic accuracy and have a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support. Learn more about getting connected at http://www.hpe.com/services/getconnected

Recommended Services

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. HPE Proactive Care is available in 3, 4 and 5 year terms with a choice of response levels: Next Business day (NBD), 24x7 with a 4 hour response, and 24x7 with 6 hour call to repair (CTR). This Service combines both reactive support when there is a problem with an enhanced call experience and start to finish case management with proactive reporting and advice. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.).

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Proactive Care Advanced

Incorporates all the deliverables of HPE Proactive Care plus includes personalized support from a local, assigned Account Support Manager who will share best practice advice and personalized recommendations designed to help improve availability and performance to help increase stability and reduce unplanned downtime. Leverage your system’s ability to connect to HPE for pre-failure alerts, automatic call logging and parts dispatch.  For business critical incidents, Proactive Care Advanced offers critical event management to help reduce mean time to resolution. HPE Service Credits are included to redeem for technical and operational services.   HPE Proactive Care Advanced is offered in 3, 4, and 5 year terms with a choice of response levels: Next Business day (NBD), 24x7 with a 4 hour response, and 24x7 with 6 hour call to repair (CTR).

https://www.hpe.com/h20195/v2/getdocument.aspx?docname=4AA5-3259ENW

NOTE:*HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.

Other related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356ENW.pdf

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).

HPE Datacenter Care service

HPE Datacenter Care helps customers to address the pressing needs of IT today and smoothly transform to a more agile cloud-like IT operations model. We help run and monitor your IT by offloading the day to day routine tasks, helping customers be more predictive and proactive, and saving time with one place to call with for all of their IT. Datacenter Care is available as both tailored statement of work and as a packaged service for 3, 4, and 5 year terms.

Partner with an assigned account team backed by local and global experts, access HPE enhanced call experience with priority access, use specialized support for complex, technologies, choose hardware and software support for your devices, implement proactive monitoring to stay ahead of issues , and access HPE IT best practices and IP. HPE Datacenter Care advantage options are available to add to your agreement to give you specialized expertise for performance, security, back up analysis, and much more. https://www.hpe.com/us/en/services/datacenter-hybrid-services.html

DC for Hyperscale

Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Service Credits

HPE Service Credits offers flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.

Learn more http://www.hpe.com/support/hpesc.

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

NOTE: *HPE Support Center Mobile App is subject to local availability.

For more information: http://www.hpe.com/services.

NOTE: HPE ProLiant DL385 Gen10 Server is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support here.

Parts and Materials

Hewllett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Packard Enterprise due to malfunction.

European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Entry Model

Entry Model

Performance Model

Solution Model

[SKU Number]

P16690-xx1

P16692-xx1

P16694-xx1

P16693-xx1

Model Name

HPE ProLiant DL385 Gen10 7262 3.2GHz 8-core 1P 16GB-R 12LFF 800W RPS Server

HPE ProLiant DL385 Gen10 7262 3.2GHz 8-core 1P 16GB-R 8SFF 800W RPS Server

HPE ProLiant DL385 Gen10 7302 3.0GHz 16-core 1P 16GB-R 8SFF 800W RPS Server

HPE ProLiant DL385 Gen10 7452 2.2GHz 32-core 1P 16GB-R 24SFF 800W RPS Server

Processor

7262 (8-Core, 3.2 GHz, 155W)

7262 (8-Core, 3.2 GHz, 155W)

7302 (16-Core, 3.0 GHz, 155W)

7452 (32-Core, 2.2GHz, 155W)

Number of Processors

One processor

One processor

One processor

One processor

Memory

16 GB RDIMM DR 2933 MT/s (1x 16 GB)

16 GB RDIMM DR 2933 MT/s (1x 16 GB)

16 GB RDIMM DR 2933 MT/s (1x 16 GB)

16 GB RDIMM DR 2933 MT/s (1x 16 GB)

Network Controller

HPE 1Gb Ethernet 4-Port 336FLR Adapter plus optional HPE FlexibleLOM or stand up card

HPE 1Gb Ethernet 4-Port 336FLR Adapter plus optional HPE FlexibleLOM or stand up card

HPE 1Gb Ethernet 4-Port 336FLR Adapter plus optional HPE FlexibleLOM or stand up card

HPE 1Gb Ethernet 4-Port 336FLR Adapter plus optional HPE FlexibleLOM or stand up card

Storage Controller

P816i-a

NOTE: 16-Port modular Smart Array.

NOTE: Smart Storage battery included.

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

None ship as standard

None ship as standard

None ship as standard

Internal Storage

12 LFF chassis

8 SFF Chassis

8 SFF Chassis

24 SFF Chassis

Optical Drive Bay

Optional via Universal Media Bay (included)

Optional Universal Media Bay (included)

Optional Universal Media Bay (included)

Optional Universal Media Bay (included)

Optical Drive

None ship as standard

None ship as standard

None ship as standard

None ship as standard

PCI-Express Slots

3-slots (x8, x16, x8) as standard

3-slots (x8, x16, x8) as standard

3-slots (x8, x16, x8) as standard

3-slots (x8, x16, x8) as standard

Power Supply

1x 800W HPE FlexSlot Power Supply

1x 800W HPE FlexSlot Power Supply

1x 800W HPE FlexSlot Power Supply

1x 800W HPE FlexSlot Power Supply

Fans

6-High Performance fans

4-standard fans

4-standard fans

6-High Performance fans

Management

Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)

Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced

Energy Star

2.1 certified

Form Factor

2U Rack, Easy Install rails without CMA

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Entry Models

[SKU Number]

878712-xx1

P11747-xx1

Model Name

HPE ProLiant DL385 Gen10 7251 1P 16GB-R E208i-a 8LFF SATA 500W PS Entry Server

HPE ProLiant DL385 Gen10 7251 2.1GHz 8-core 1P 16GB-R P408i-a 8SFF 500W PS Server

Processor

7251 (8-Core, 2.1 GHz, 120W)

7251 (8-Core, 2.1 GHz, 120W)

Number of Processors

One processor

One processor

Memory

16 GB RDIMM DR 2600 MT/s (1x 16 GB)

16 GB RDIMM DR 2600 MT/s (1x 16 GB)

Network Controller

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

Storage Controller

Embedded S100i for 2 x M.2 Connectors

E208i-a

NOTE: 8-Port modular Smart Array.

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

None ship as standard

Internal Storage

8 LFF chassis, with 2 SFF bays optional  (upgradeable to 15LFF with 4LFF mid and 3LFF rear + 2SFF rear)

8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear)

Optical Drive Bay

Optional via Universal Media Bay (included)

Optional Universal Media Bay (included)

Optical Drive

None ship as standard

None ship as standard

PCI-Express Slots

3-slots (x8, x16, x8) as standard

3-slots (x8, x16, x8) as standard

Power Supply

1x 500W HPE FlexSlot Power Supply

1x 500W HPE FlexSlot Power Supply

Fans

4-standard fans

4-standard fans

Management

Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)

Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced

Energy Star

2.1 certified

Form Factor

2U Rack, Easy Install rails without CMA

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Entry Model

[SKU Number]

878714-AA1

Model Name

HPE ProLiant DL385 Gen10 7251 2.1GHz 8-core 1P 8GB-R E208i-a 8SFF SATA 500W PS Entry CN Server

Processor

7251 (8-Core, 2.1 GHz, 120W)

Number of Processors

One processor

Memory

8 GB RDIMM DR 2600 MT/s (1x 8 GB)

Network Controller

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

Storage Controller

Embedded S100i for 2 x M.2 Connectors

E208i-a

NOTE: 8-Port modular Smart Array.

Hard Drive

None ship as standard

Internal Storage

8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear)

Optical Drive Bay

Optional Universal Media Bay (882097-B21)

Optical Drive

None ship as standard

PCI-Express Slots

3-slots (x8, x16, x8) as standard

Power Supply

1x 500W HPE FlexSlot Power Supply

Fans

4-standard fans

Management

Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)

Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced

Energy Star

2.1 certified

Form Factor

2U Rack, Easy Install rails without CMA

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Base Model

[SKU Number]

878716-xx1

P11809-xx1

Model Name

HPE ProLiant DL385 Gen10 7251 1P 32GB-R P816i-a 12LFF SATA 800W PS Base Server

HPE ProLiant DL385 Gen10 7301 2.2GHz 16-core 1P 32GB-R P408i-a 8SFF 800W PS Server

Processor

7251 (8-Core, 2.1 GHz, 185W)

7301 (16-Core, 2.2 GHz, 170W)

Number of Processors

One processor

One processor

Memory

32 GB RDIMM DR 2666 MT/s (2x 16 GB)

32 GB RDIMM DR 2600 MT/s (2x 16 GB)

Network Controller

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

Storage Controller

P816i-a

NOTE: 16-Port modular Smart Array.

NOTE: Smart Storage battery included.

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

None ship as standard

Internal Storage

12 LFF chassis (upgradeable to 19LFF with 4LFF mid and 3LFF rear + 2SFF)

8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear)

Optical Drive Bay

Optional via Universal Media Bay (included)

Optional Universal Media Bay (882097-B21)

Optical Drive

None ship as standard

None ship as standard

PCI-Express Slots

3-slots (x8, x16, x8) as standard

3-slots (x8, x16, x8) as standard

Power Supply

1x 800W HPE FlexSlot power supply

1x 800W HPE FlexSlot power supply

Fans

6-High Performance fans

4-standard fans

Management

Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)

Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced

Energy Star

2.1 certified

Form Factor

2U Rack, Easy install rails with CMA

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response

SMB Base Model

Base Model

[SKU Number]

P09707-xx1

P09708-xx1

Model Name

HPE ProLiant DL385 Gen10 7351 1P 32GB-R P408i-a 8SFF SAS 800W PS Base Server

HPE ProLiant DL385 Gen10 7551 1P 32GB-R P408i-a 8SFF SAS 800W PS Perf Server

Processor

7351 (16-Core, 2.4GHz, 170W)

7551 (32-Core, 2.0 GHz, 180W)

Number of Processors

One Processor

Memory

32 GB RDIMM SR 2666 MT/s (2x 16 GB)

Network Controller

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

Storage Controller

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

Internal Storage

8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear)

Optical Drive Bay

Optional Universal Media Bay (882097-B21)

Universal Media Bay (882097-B21)

Optical Drive

None ship as standard

PCI-Express Slots

3-slots (x8, x16, x8) as standard

Power Supply

1x 800W HPE FlexSlot power supply

Fans

4-Standard fans

Management

Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)

Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced

Energy Star

2.1 certified

Form Factor

2U Rack, Easy Install rails

Warranty

3-3-3

Base Model

Performance Model

High Performance Model

[SKU Number]

878720-xx1

878722-xx1

878724-xx1

Model Name

HPE ProLiant DL385 Gen10 7401 1P 32GB-R P408i-a 24SFF SAS 800W PS Base Server

HPE ProLiant DL385 Gen10 7451 2P 64GB-R P408i-a 8SFF SAS 2x800W PS Perf Server

HPE ProLiant DL385 Gen10 7451 2P 64GB-R P408i-a 24SFF SAS 2x800W PS Perf Server

Processor

7401 (24-Core, 2.0GHz, 170W)

7451 (24-Core, 2.3 GHz, 180W)

7451 (24-Core, 2.0 GHz, 180W)

Number of Processors

One Processor

Two processors

Two processors

Memory

32 GB RDIMM DR 2600 MT/s (2x 16 GB)

64 GB RDIMM DR 2666 MT/s (2x 32 GB)

64 GB RDIMM DR 2666 MT/s (2x 32 GB)

Network Controller

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

HPE 1Gb Ethernet 4-Port 331i Adapter plus HPE Ethernet 10/25 Gb 2-port 640FLR-SFP28 Adapter (817749-B21)

HPE 1Gb Ethernet 4-Port 331i Adapter plus HPE Ethernet 25 Gb 2-port 631FLR Adapter

(817709-B21)

Storage Controller

P408i-a w/Expander

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

P408i-a w/Expander

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

None ship as standard

None ship as standard

Internal Storage

24 SFF Chassis

8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear)

24 SFF Chassis

Optical Drive Bay

Optional Universal Media Bay (882097-B21)

Universal Media Bay (882097-B21)

Universal Media Bay (882097-B21)

Optical Drive

None ship as standard

DVD-RW

DVD-RW

PCI-Express Slots

3-slots (x8, x16, x8) as standard

8 total: 3-slots (x8, x16, x8) as standard, plus 3 PCIe (x8, x16, x8), 2 PCIe (x8) Tertiary Riser Kit

8 total: 3-slots (x8, x16, x8) as standard, plus 3 PCIe (x8, x16, x8), 2 PCIe (x8) Tertiary Riser Kit

Power Supply

1x 800W HPE FlexSlot power supply

2x 800W HPE FlexSlot power supply

2x 800W HPE FlexSlot power supply

Fans

6-High Performance fans

Management

Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)

Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced

Default: HPE iLO Advanced with Intelligent Provisioning, HPE OneView Standard (requires download)

Optional (require licenses): HPE iLO Advanced Premium Security Edition, HPE OneView Advanced

Energy Star

2.1 certified

Form Factor

2U Rack, Easy Install rails with CMA

Warranty

3-3-3

Country Code Key

xx1 = B21 Worldwide

NOTE: The -B21 WW SKU is to be ordered in all countries other than Japan.

xx1 = 291 Japan

European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

1. Factory Integrated Models must start with a CTO Server.

2. FIO indicates that this option is only available as a factory installable option.

3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

NOTE: HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

NOTE: TAA chassis are only orderable in North America and Canada.

NOTE: The HPE ProLiant DL385 Gen10 12 LFF CTO Server ships with the cable required for the P816i-a installation.

NOTE:The cables that come standard with the 8SFF chassis for BOX3 work for the first 8 drives, and are connected to the E208 or the P408.  When the 8SFF drive cage for BOX2 or BOX1 is ordered, the cables come with the drive cage kits.

NOTE: All CTO servers are Energy Star 2.1 compliant.

NOTE: 4x 1 embedded LOM is not equipped on new boards for 7xx2 series processor

NOTE: This aplies to CTO configurations, field upgrades may differ depending field configuration.

NOTE: 3x 8 NVMe option on SFF requires the second processor be installed and I/O cards are limited to ALOM options.

Step 2a: Choose Required Options – Processors (only one of the following unless otherwise noted)

Please select one –L21 processor required below.

For second processor, please select the same processor model with –B21 from Core Options – HPE Processors section.

For example: first processor, select 874752-L21 then for second processor, select 874752-B21.

NOTE: 8SFF CTO 1P models ship with 4 standard fans. The second processor option kit contains 2 additional fans. 12 LFF and 24 SFF CTO Servers ship with 6 High performance fans included; 8LFF CTO Servers ship with 6 Standard fans included. High performance fan kit is available to meet ambient temperature environments are are required for rear drives or NVMe configurations. NVMe is limited to front install only.

NOTE: Mixing of 2 different processor models are NOT allowed.

NOTE: DDR4 memory speed will depend on the quantity and type of DIMMs installed.

NOTE: Processors with greater than 180W will ship with the High Performance heatsink.

NOTE: Processors with greater than 180W will require the High Performance fan kit.

Processor Option Kits

SKU

AMD® EPYC® 7xx2 Generation Processor Family

HPE DL385 Gen10 AMD EPYC 7702 (2.0GHz/64-core/200W) FIO Processor Kit

P16636-L21

NOTE: Ships with High Performance Heatsink.

HPE DL385 Gen10 AMD EPYC 7552 (2.2GHz/48-core/165-200W) FIO Processor Kit

P21862-L21

NOTE: Ships with High Performance Heatsink.

HPE DL385 Gen10 AMD EPYC 7502 (2.5GHz/32-core/180-200W) FIO Processor Kit

P16638-L21

NOTE: Ships with High Performance Heatsink.

HPE DL385 Gen10 AMD EPYC 7402 (2.8GHz/24-core/180-200W) FIO Processor Kit

P16640-L21

NOTE: Ships with High Performance Heatsink.

HPE DL385 Gen10 AMD EPYC 7352 (2.3GHz/24-core/155W) FIO Processor Kit

P21422-L21

NOTE: Ships with Standard Heatsink

HPE DL385 Gen10 AMD EPYC 7452 (2.3GHz/32-core/155-180W) FIO Processor Kit

P16642-L21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC 7302 (3.0GHz/16-core/155W) FIO Processor Kit

P16643-L21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC 7262 (3.2GHz/8-core/155-180W) FIO Processor Kit

P16645-L21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC 7702 (2.0GHz/64-core/200W) Processor Kit

P16636-B21

NOTE: Ships with High Performance Heatsink.

HPE DL385 Gen10 AMD EPYC 7552 (2.2GHz/48-core/165-200W) Processor Kit

P21862-B21

NOTE: Ships with High Performance Heatsink.

HPE DL385 Gen10 AMD EPYC 7502 (2.5GHz/32-core/180-200W) Processor Kit

P16638-B21

NOTE: Ships with High Performance Heatsink.

HPE DL385 Gen10 AMD EPYC 7402 (2.8GHz/24-core/180-200W) Processor Kit

P16640-B21

NOTE: Ships with High Performance Heatsink.

HPE DL385 Gen10 AMD EPYC 7352 (2.3GHz/24-core/155W) Processor Kit

P21422-B21

NOTE: Ships with Standard Heatsink

HPE DL385 Gen10 AMD EPYC 7452 (2.3GHz/32-core/155-180W) Processor Kit

P16642-B21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC 7302 (3.0GHz/16-core/155W) Processor Kit

P16643-B21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC 7262 (3.2GHz/8-core/155-180W) Processor Kit

P16645-B21

NOTE: Ships with Standard Heatsink

AMD® EPYC® 7xx1 Generation Processor Family

HPE DL385 Gen10 AMD EPYC - 7601 (2.2GHz/32-core/180W) FIO Processor Kit

881162-L21

NOTE: Ships with Performance Heatsink.

HPE DL385 Gen10 AMD EPYC - 7551 (2.0GHz/32-core/180W) FIO Processor Kit

881163-L21

NOTE: Ships with Performance Heatsink.

HPE DL385 Gen10 AMD EPYC - 7501 (2GHz/32-core/155-170W) FIO Processor Kit

881164-L21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC - 7451 (2.3GHz/24-core/180W) FIO Processor Kit

881165-L21

NOTE: Ships with Performance Heatsink.

HPE DL385 Gen10 AMD EPYC - 7401 (2GHz/24-core/155-170W) FIO Processor Kit

881166-L21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC 7371 (3.1GHz/16-core/180W) Processor Kit

P11520-B21

NOTE: Ships with Performance Heatsink.

HPE DL385 Gen10 AMD EPYC - 7351 (2.4GHz/16-core/155-170W) FIO Processor Kit

881169-L21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC - 7301 (2.2GHz/16-core/155-170W) FIO Processor Kit

881170-L21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC - 7281 (2.1GHz/16-core/155-170W) FIO Processor Kit

P00645-L21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC 7261 (2.5GHz/8-core/155-170W) Processor Kit

P06047-B21

NOTE: Ships with Standard Heatsink.

HPE DL385 Gen10 AMD EPYC - 7251 (2.1GHz/8-core/120W) FIO Processor Kit

881171-L21

NOTE: Ships with Standard Heatsink.

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to: http://www.hpe.com/docs/amd-population-rules

For Gen10 memory speed table, please go to: http://www.hpe.com/docs/amd-speed-tables

NOTE: Memory DIMM availability with a server platform is dependent upon completion of certification testing.

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Description

SKU

Registered DIMMs (RDIMMs)

HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

838079-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

838089-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

838081-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

838083-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

P05592-B21

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P19040-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P19042-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart

P19041-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart

P19043-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P19045-B21

Load Reduced DIMMs (LRDIMMs)

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Smart Memory Kit

838085-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2666 CAS-22-19-19 3DS Load Reduced Smart Memory Kit

838087-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit

P19044-B21

HPE 128GB (1x128GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit

P19047-B21

NOTE: Mixing of x4 & x8 memory is not allowed

NOTE: 2933 MT/s DIMMs are only supported with AMD® EPYC® 7xx2 Series Processor Family

NOTE: 2666 MT/s DIMMs are only supported with AMD® EPYC® 7xx1 Series Processor Family.

NOTE: 2933 MT/s memory SKUs offer a transfer rate of 2933 MT/s at 1 DIMM per channel and 2666 MT/s at 2 DIMMs per channel

Memory Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

NOTE: This kit is required for processors above 126W and when 4LFF MID-Plane Carrier kit (882096-B21) is selected

Step 2c: Choose Power Supplies

Select one or two power supplies from below.

NOTE: Mixing of 2 different power supplies is NOT allowed.

HPE Flex Slot Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

NOTE: Select one or more power supplies.

NOTE: 1600W Power supplies only support high line voltage (200VAC to 240VAC).

NOTE: Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:

http://www.hpe.com/info/hppoweradvisor.

NOTE: All power supplies in a server should match. Mixing Power Supplies is not supported.

NOTE: HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE power cords for a full list of optional power cords.

Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration

HPE Unique Options

NOTE: DL385 has support for 4x NMVE drives when the second CPU is selected. NVME cable 871827-B21 is required and supports 2 drives each.

Description

SKU

HPE DL38X Gen10 Slot 1/2 x16/x16 FIO Riser Kit

871674-B21

NOTE: Slot 1 or 2 in Primary location.

NOTE: Supports Full Height and Full length cards.

NOTE: Bus width x16, x16, Connector Width x16, x16.

HPE DL38X Gen10 x16/x16 GPU Slot2/3 FIO Riser Kit

871676-B21

NOTE: Primary Riser, Connector in slot 2 & 3 for GPU support.

NOTE: Supports Full Height and Full length cards.

NOTE: Bus width x16, x16, Connector Width x16, x16.

HPE DL38X Gen10 4 NVMe Box 1 FIO Option

878186-B21

HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe Slim SAS FIO Riser Kit

871673-B21

NOTE: Supports 3x 8 and 1-port for NVMe.

NOTE: Supports Full Height and half-length cards.

NOTE: Bus width x8, x8, x8 Connector Width x8, x8, x8.

HPE DL38X Gen10 2 NVMe FIO Option

878189-B21

NOTE: This is a factory integrated only option.

NOTE: This will connect 2 SFF cage installed in the front of the chassis to NVMe.

NOTE: This supports NMVe only, if desired, to maintain SATA drive compatibility the 3 POS cable kit must also be selected (882100-B21).

HPE DL380X/Apollo 6500 Gen10 6+2 NVMe FIO Option

878192-B21

NOTE: This is a factory integrated only option.

NOTE: Indicates the cage will also have an NVMe connection. NOTE: When NVME is selected, the SAS/SATA will no longer function unless the controller selection supports it, or the 3POS cable is selected for S100i connection.

HPE DL38X Gen10 8 SFF Front Cage Removal FIO Option

873763-B21

NOTE: This is a factory integrated only option.

NOTE: Will remove the Primary 8SFF cage in Box 3 of the 8SFF and replace with a Box blank.

HPE DL38X Gen10 Primary Riser Removal FIO Option

873766-B21

NOTE: This is a factory integrated only option.

NOTE: Will remove the Primary shipping PCIe riser.

HPE Legacy FIO Mode Setting

758959-B22

NOTE: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

NOTE: Fast Fault Tolerance is a new feature in Gen10 server memory that enables the system to boot with full memory performance while monitoring for DRAM device failures.

HPE DL38X Gen10 x16/x16/x16 Secondary GPU FIO Riser Kit

P14373-B21

HPE DL38X Gen10 x16/x16/x16 Primary GPU FIO Riser Kit

P14374-B21

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

Description

SKU

HPE Unique Options

HPE DL38X NVMe 8 Solid State Drive Express Bay Enablement Kit

826689-B21

NOTE: This option provides support for up to 8 NVMe drives, and can only be populated in Box 1, Box 2 and Box 3 of the SFF chassis.

NOTE: The HPE DL385 Gen10 High Performance fan kit is required for NVMe support (867810-B21).

NOTE: The HPE DL38X Gen10 4-port 8 NVMe SlimSAS Riser (867807-B21) is required to support this.

NOTE: If BOX 1, 2 and 3 are populated for full 24 drive NVMe support this requires 3 risers (1st 867807-B21, 2nd 873732-B21, & 3rd 867808-B21) and the on board NVMe connections with 2x NVMe cable (871827-B21).

NOTE: There are limitations on GPU support with the NVMe bay installed.

HPE DL385 Gen10 Universal Media Bay

882097-B21

NOTE: The HPE DL385 Gen10 Universal Media bay provides front Display Port and 2xUSB 2.0; plus support for 2x SFF front drives or 2 NVMe front drives (826687-B21 and NVMe riser required see note below) and ODD support (Not included); and can only be located in Box1 in either an 8 SFF or 8+8 SFF model.

NOTE: This is a SFF model option only.

NOTE: For support of the 2 NVMe drives this will require the addition of the HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser (867806-B21) for 1P configurations.

NOTE: For 2P configurations the HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser (867808-B21) is needed or the NVMe cable (871827-B21) with the on board NVMe connections may be used.

HPE DL38X Gen10 Premium 6 SFF SAS/SATA + 2 NVMe or 8 SFF SAS/SATA Bay Kit

826690-B21

NOTE: This kit can be supported in Box 1, 2 or 3 and provides support for up to 8 SFF SAS/SATA or 6 SAS/SATA + 2 NVMe drives per Box.

NOTE: With NVMe drives a specific riser is required for 1P. 2P enables the on board NVMe connection with the NVMe cable 871827-B21 or this can be enabled with NMVe risers.

NOTE: When adding to Box 1 the addition of the High Performance Fan kit (867810-B21) is required

.

HPE DL385 Gen10 High Performance Heatsink Kit

882098-B21

NOTE: Required for GPU installations.

NOTE: Processor kits above 180W include a High Performance Heatsink.

HPE DL385 Gen10 1U High Performance Heat Sink Kit

P19368-B21

NOTE: This kit is required for processors above 126W and when 4LFF mid-plane carrier kit (882096-B21) is selected

NOTE: Both Heatsink kits - 882098-B21 & P19368-B21 cannot be selected together

HPE DL38X Gen10 High Performance Temperature Fan Kit

867810-B21

NOTE: This kit is also required to support GPUs configurations.

NOTE: This is required for NVMe configurations.

NOTE: This kit provides maximum cooling for your Server.

NOTE: This kit is required when Box 1, 2 and 3 are populated.

HPE DL38X Gen10 2SFF HDD SAS/SATA Riser Kit

826688-B21

NOTE: 2 SFF in the rear is only supported with a 24 SFF model or 12 LFF model.

NOTE: In the rear this leaves 1x16 slot accessible.

NOTE: Rear drives require the addition of the High Performance Fan kit (867810-B21) .

HPE DL38X Gen10 2SFF Premium HDD Front NVMe or Front/Rear SAS/SATA Kit

826687-B21

NOTE: HPE DL38X Gen10 High Performance Temperature Fan Kit (867810-B21)

NOTE: NVMe drives require the addition of an NVMe capable riser or a 2P configuration and the NVMe cable 871827-B21 for the on board NVMe connections.

NOTE: To maintain SATA compatibility with NVMe connections, the 3 POS cable (882100-B21) must also be used.

NOTE: Drive cage can be used in the rear of the chassis, but will not support NVMe drives rear.

NOTE: Supports uFF drives.

HPE DL38X Gen10 8LFF Front 2NVMe HDD Bay Kit

873781-B21

NOTE: Supports 2 NVMe in the Universal Media bay (included) on the 8 LFF model.

NOTE: For support of the 2 NVMe drives this will require the addition of the HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser (867806-B21) for 1P configurations.

NOTE: For 2P configurations the HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser (867808-B21) is needed or the NVME cable 871827-B21 with the on board NVMe connections may be used.

NOTE: NVMe drives require the addition of the High Performance Fan kit (867810-B21).

HPE DL38X Gen10 12Gb SAS Expander Card Kit with Cables

870549-B21

NOTE: SAS expander to enable 24 SFF field upgrade.

NOTE: Primary population in slot 3 of the primary riser.

HPE DL3XX Gen10 Rear Serial Cable and Enablement Kit

873770-B21

HPE DL38X Gen10 8LFF Front 2SFF SAS/SATA HDD Kit

867805-B21

HPE DL385 Gen10 System Insight Display Kit

882099-B21

NOTE: Systems Insight Display no longer ships as standard but is available as a Factory Integrated or field upgrade option.

HPE Processors
