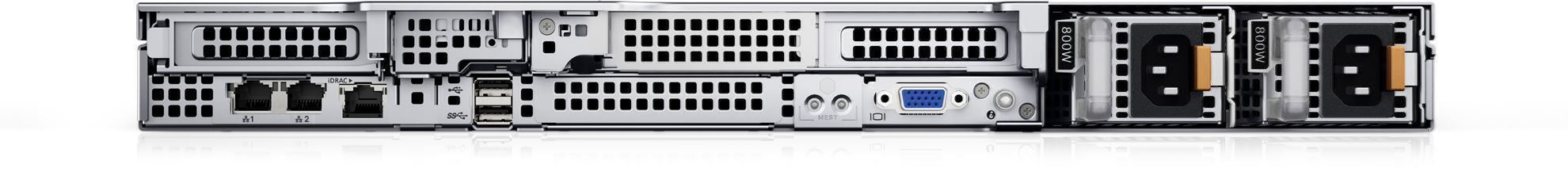

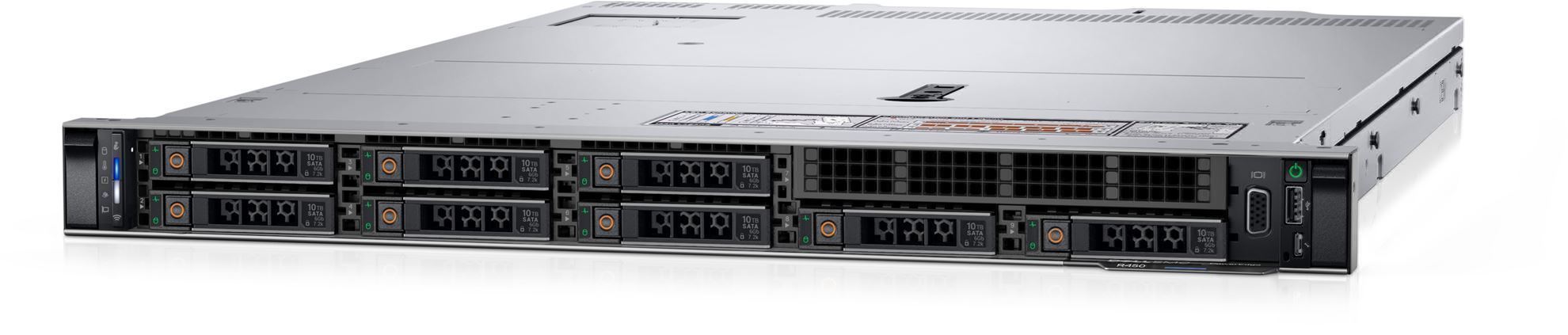

Dell PowerEdge R450 8x 2.5" Gold 5318Y

  • 2 x Intel Xeon Gold 5318Y 2.1G, 24C/48T, 11.2GT/s, 36M Cache, Turbo, HT (165W) DDR4-2933
  • 64GB (2 x 32GB) RDIMM, 3200MT/s, Dual Rank
  • 2 x 960GB SSD SAS ISE Read Intensive 12Gbps 512 2.5in Hot-plug
  • PERC H755 Controller Front Load, 12Gb/s SAS/SATA, 8GB NV Cache
  • On-Board Broadcom 5720 Dual Port 1Gb LOM
  • iDRAC9, Enterprise 15G
  • Slots: 2 x PCIe Gen4 slots
  • Storage: 8 x 2.5-inch hot swap SAS/SATA (HDD/SSD)
  • Slim DVD±RW drive, USB, External
  • Dual, Hot-Plug, Redundant Power Supply (1+1), 600W
  • Power Cord - C13, 1.9M, 250V, 10A
  • Form factor: Rack (1U), ReadyRails Sliding Rails
  • Warranty : 4 Year ProSupport and NBD Onsite
Nhà sản xuất: Dell
Gọi để biết giá

Processor

Up to two 3rd Generation Intel® Xeon® Scalable processors, with up to 24 cores per processor

Operating System

(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Chipset

Intel® C620A chipset

Memoryi

DIMM Speed
Up to 2933 MT/s

Memory Type
RDIMM

Memory Module Slots
16 DDR4 DIMM slots

Maximum RAM
RDIMM 1 TB

Storage

Front Bays
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB

Storage Controllers

Internal Controllers
PERC H345, PERC H355, PERC H745, PERC H755, HBA355i

External Controllers
PERC H840, HBA355e

Software RAID
S150

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or USB

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management



Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module

Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility
OpenManage Mobile

Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs

OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager

OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI



Power Supplies



1100 W DC -48–(-60) V
800 W Platinum AC/240 V HVDC
600 W Platinum AC/240 V HVDC
Hot plug power supplies with full redundancy option
Up to 7 cold swap fans



Ports



Network Options
2 x 1 GbE LOM and 1 x OCP 3.0

Front Ports
1 x dedicated iDRAC Direct micro-USB
1 x USB 3.0
1 x VGA

Rear Ports
1 x USB 2.0
1 x Serial (optional)
1 x USB 3.0
2 x Ethernet
1 x VGA

Internal Ports
1 x USB 3.0



Slots



2 x PCIe Gen4 slots



Bezel

Optional LCD bezel or security bezel

Form Factor

1U rack server

Dimensions & Weight

Height
42.8 mm (1.68 inches)

Width
482 mm (18.97 inches)

Depth
For 4 x 3.5-inch configuration
748.79 mm (29.48 inches) with bezel
734.95 mm (28.93 inches) without bezel

For 8 x 2.5-inch configuration
698.03 mm (27.48 inches) with bezel
684.19 mm (26.93 inches) without bezel

Weight
For 4 x 3.5-inch system - 18.62 kg (41.05 lbs.)
For 8 x 2.5-inch system - 16.58 kg (36.55 lbs.)

Rack Support

ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails™ static rails for 4-post and 2-post racks.

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
