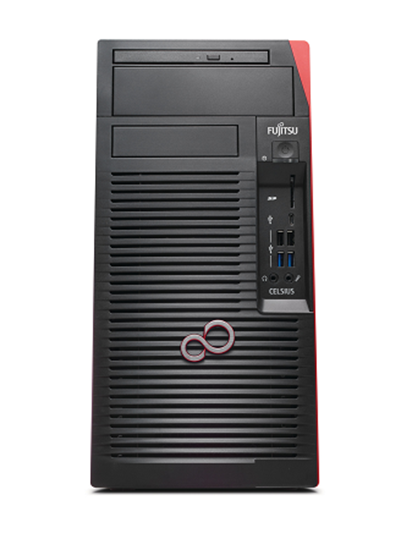

FUJITSU Workstation CELSIUS W580 i7-8700

  • Intel® Core™ i7-8700 processor (6 Cores / 12 Threads, 3.20 GHz, up to 4.6 GHz, 12 MB)
  • 8 GB (1 module(s) 8 GB) DDR4, unbuffered, ECC, 2,666 MHz, UDIMM
  • HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
  • Controller functionsSerial ATA III (6 Gbit) AHCI RAID 0/1/5/10
  • Intel® UHD Graphics 630
  • Internal speaker, High Definition audio, 5.1 surround sound
  • 1 x 10/100/1,000 MBit/s Intel® I219LM
  • Slots: All slots PCIe Gen 3: (1) PCIe x16 , (1) PCie x16 wired as x4, (2) PCIe x16 wired as x1
  • 2x 3.5" / 1x 2.5" SATA SSD/HDD /1 x M.2 Drive / PCIe SSD M.2 Interposer Card
  • DVD Super Multi, SATA
  • Keyboard on (Special Fujitsu keyboard required) & USB keyboards
  • 8x DVD+/-RW 9.5mm Optical Disk Drive
  • Dell Optical Mouse & Keyboard
  • Power supply: efficiency 400 W
  • OS License : Windows 10 Pro for Workstations
  • Warranty : 03 years (Onsite 9x5 NBD)
Nhà sản xuất: FUJITSU
35.400.000 ₫

Technical details

Product CELSIUS W580
Operating system Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
Windows 10 Pro for Workstations
Windows 10 Home
Additional software (preinstalled) Adobe® Reader® (pdf reader)
McAfee® LiveSafe™ (provides award-winning antivirus protection for your PC and much more. 30 days trial pre-installed)
Microsoft Office (1 month trial for new Microsoft® Office 365 customers. Buy Microsoft Office.)
Mainboard D3617 ()
Chipset Intel® C246
Processor Type, Second Level cache, Processor frequency Intel® Xeon® processor E-2124G, 8 MB, 3.40 GHz, up to 4.5 GHz
Intel® Xeon® processor E-2124, 8 MB, 3.30 GHz, up to 4.5 GHz
Intel® Xeon® processor E-2126G, 12 MB, 3.30 GHz, up to 4.5 GHz
Intel® Xeon® processor E-2134, 8 MB, 3.50 GHz, up to 4.5 GHz
Intel® Xeon® processor E-2136, 12 MB, 3.30 GHz, up to 4.5 GHz
Intel® Xeon® processor E-2144G, 8 MB, 3.60 GHz, up to 4.5 GHz
Intel® Xeon® processor E-2146G, 12 MB, 3.50 GHz, up to 4.5 GHz
Intel® Xeon® processor E-2174G, 8 MB, 3.80 GHz, up to 4.7 GHz
Intel® Xeon® processor E-2186G, 12 MB, 3.80 GHz, up to 4.7 GHz
Intel® Core™ i7-8700 processor, 12 MB, 3.20 GHz, up to 4.6 GHz
Intel® Core™ i7-8700K processor, 12 MB, 3.70 GHz, up to 4.7 GHz
Intel® Core™ i5-8600 processor, 9 MB, 3.10 GHz, up to 4.3 GHz
Intel® Core™ i5-8500 processor, 9 MB, 3.00 GHz, up to 4.1 GHz
Intel® Core™ i3-8100 processor, 6 MB, 3.60 GHz
Processor quantity maximum 1
Supported capacity RAM (max.) 64 GB, 4 Memory slot(s) DIMM (DDR4) ECC/non-ECC, Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2666 MHz may be clocked down to 2400 MHz depending on processor and memory configuration
Serial ATA 8 x Serial ATA total
thereof eSATA 2 (optional)
Controller functions Serial ATA III (6 Gbit), NCQ, AHCI, RAID 0/1/5/10
Drives (optional) MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0
DVD-ROM
DVD Super Multi, SATA
DVD Super Multi ultra slim (tray), SATA
BD Triple Writer SATA ultra slim (tray), SATA
Hard disk drive SSD SATA III, 1024 GB, 2.5-inch
SSD SATA III, 960 GB High Endurance, 1DWDP, 2.5-inch
SSD SATA III, 512 GB, 2.5-inch
SSD SATA III, 480 GB High Endurance, 1DWDP, 2.5-inch
SSD SATA III, 256 GB, 2.5-inch
SSD SATA III, 240 GB High Endurance, 1DWDP, 2.5-inch
SSD SATA III, 128 GB, 2.5-inch
SSD PCIe, 2048 GB M.2 NVMe Highend module
SSD PCIe, 1024 GB M.2 NVMe module, SED
SSD PCIe, 1024 GB M.2 NVMe module
SSD PCIe, 1024 GB M.2 NVMe Highend module
SSD PCIe, 512 GB M.2 NVMe module, SED
SSD PCIe, 512 GB M.2 NVMe module
SSD PCIe, 512 GB M.2 NVMe Highend module
SSD PCIe, 256 GB M.2 NVMe module, SED
SSD PCIe, 256 GB M.2 NVMe module
SSD PCIe, 256 GB M.2 NVMe Highend module
SSD PCIe, 1x1024 GB M.2 NVMe Highend card
SSD PCIe, 1x 2048 GB M.2 NVMe Highend card
SSD PCIe, 1x 1024 GB M.2 NVMe card
SSD PCIe, 1x 512 GB M.2 NVMe Highend card
SSD PCIe, 1x 512 GB M.2 NVMe card
SSD PCIe, 1x 256 GB M.2 NVMe Highend card
SSD PCIe, 1x 256 GB M.2 NVMe card
HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 6,000 GB, 3.5-inch, business critical
HDD SATA III, 7,200 rpm, 4,000 GB, 3.5-inch, business critical
HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch, business critical
HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
Drive bays 1 x 3.5-inch external bays
2 x 3.5-inch internal bays
2 x 5.25-inch external bays
Slots 1 x PCI-Express 3.0 x4 (mech. x16)
1 x PCI-Express 3.0 x16
2 x PCI-Express 3.0 x1
Interfaces 1 x Audio: line-in
1 x Audio: line-out
1 x Front audio: headphone
1 x Front audio: microphone
1 x Internal speakers
6 x USB 2.0 total
2x USB 2.0; 2x USB 3.1 (gen2), 1x USB 3.1 (gen2) Type C; optional: 1x USB 3.1 Type-C (Gen2) via add on card and front adapter bay x USB front
2x USB 2.0 + 1x USB A 3.1 (gen2) x USB internal
2x USB 2.0; 3x USB 3.1 (Gen1); 1x USB 3.1 (Gen2); optional: additional 1x USB 3.1 Type C (Gen2) via add on card x USB rear
2 x DisplayPort
1 (optional) x Parallel (25pin with EPP and ECP)
optional: via adapter card x VGA
1 x Ethernet (RJ-45)
1 (DVI-D) x DVI
1 (optional) x eSATA
2 x Mouse / Keyboard (PS/2)
Graphics Intel® HD Graphics P630, Intel® HD Graphics 630, up to 1,782 MB
Graphics features Support for up to three independent displays, DirectX® 12, HDCP support, OpenCL® 2.0, OpenGL® 4.4, One DisplayPort connector can be converted to DVI-D or HDMI with an optional external adapter, For multi monitoring mode, graphics card and integrated graphics run in parallel, DisplayPort interface supports Ver. 1.2 incl. Multi-Stream, DVI-D interface supports audio output for HDMI monitors
Ultra-high-end 3D: NVIDIA® Quadro® RTX 4000, 8 GB, PCIe x16, 3x DisplayPort, 1x Virtual Link
High-end 3D: AMD Radeon™ Pro WX 7100 , 8 GB, PCIe x16, 4 x DisplayPort
High-end 3D: NVIDIA® Quadro® P4000, 8 GB, PCIe x16, 4 x DisplayPort
Midrange 3D: NVIDIA® Quadro® P2000, 5 GB, PCIe x16, 4 x DisplayPort
Midrange 3D: AMD Radeon™ Pro WX 5100, 8 GB, 320 stream processors, PCIe x16, 4 x DisplayPort
Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4x miniDP
Entry 3D: AMD Radeon™ Pro WX 3100, 4 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
Entry 3D: NVIDIA® Quadro® P620, 2 GB, PCIe x16, 4x miniDP
Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3x miniDP
Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4x miniDP, PCoIP
Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2x miniDP, PCoIP
Others: VGA Extension Card
Others: DP to DVI-D (single link) Adapter Cable
Notes NVIDIA® Quadro® P4000 requires CELSIUS W580power or CELSIUS W580power+.
Audio codec Realtek ALC671
LAN 10/100/1,000 MBit/s Intel® I219LM
Weight approx. 10 kg
approx. 12 kg
approx. 30.86 lbs
Dimensions (W x D x H) 180 x 304 x 375 mm
7.09 x 11.97 x 14.76 inch
Special features Best-in-class noise emission - 18 dB only, Certified for leading workstation applications, EraseDisk functionality, Halogen free mainboard, Made in Germany
Warranty period 3 years (depending on country)
Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
